• Features: Wedge Suspension kit Type D with Eyebolt, Spring, nuts and split pin
  • Material: Socket and Eyebolt Galvanised Steel - buffer Rubber
  • Marking: According to standard
  • Finish: Socket and Eyebolt Galvanised
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7
  • Safety factor: 10:1

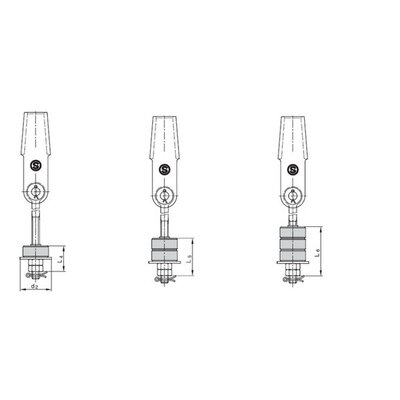

Din Wedge Sockets with Rubber Bumpers
Select a row from the table below, then click the add to quote button
Part Code Rope diameter range
mm
Thread Type FP d2 Type FP L4 Type FP2 L5 Type FP3 L6
04G0210 6-8 M12 50 51 79 107
04G0220 9-11 M16 58 59 87 115
04G0230 12-14 M20 68 65 93 121
04G0240 15-17 M24 80 74 102 130
