Crosby

Features:

  • Swage sockets incorporate a reduced machined area of the shank which is the equivalent to the proper after swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC CHECK™ permanent visual inspection opportunity.
  • Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.
  • Hardness controlled by spheroidise annealing.
  • Swage socket terminations have an efficiency rating of 100% based on the catalogue strength of wire rope.
  • Material: Carbon Steel.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Ungalvanised.
  • Safety factor: 5:1
Crosby S501
S501
Select a row from the table below, then click the add to quote button

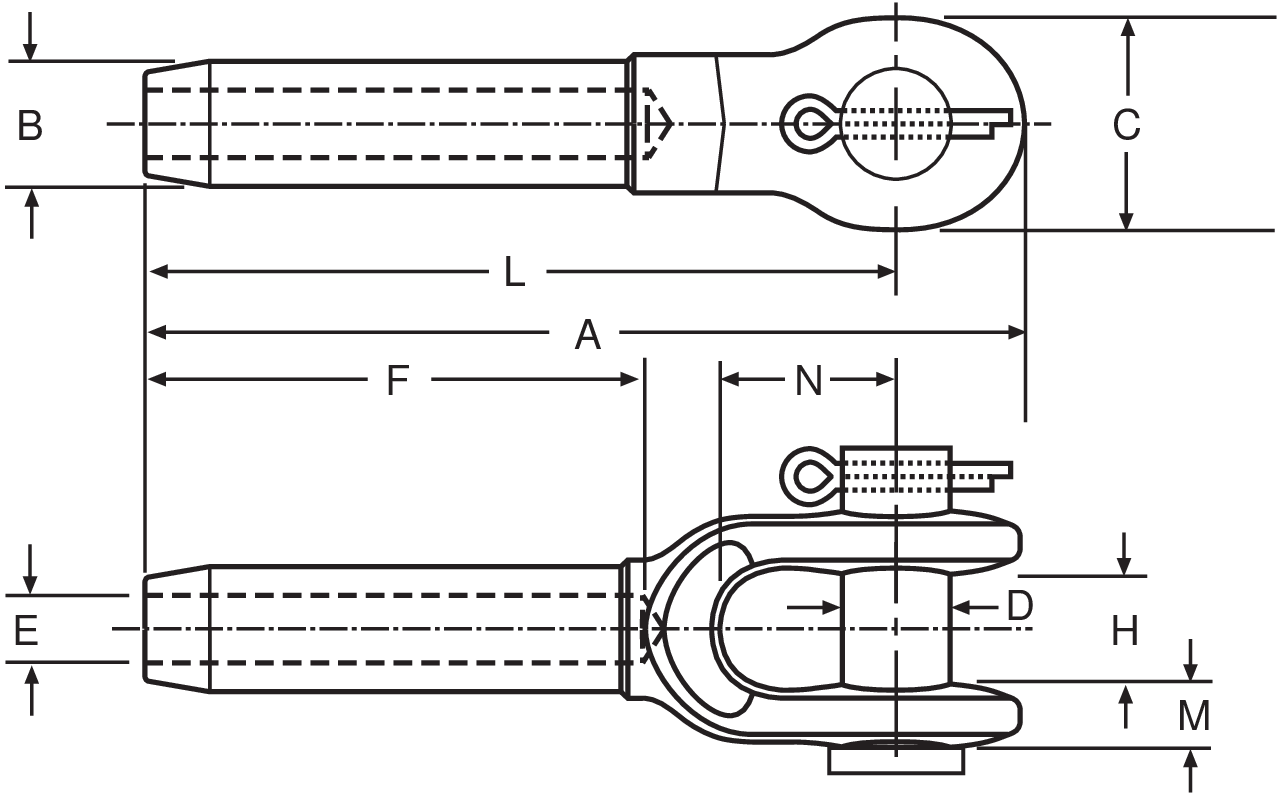

Part Code Max. after swage dia.
mm
Wire Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
H
mm
L
mm
M
mm
N
mm
Weight
kg
04B0205 11,7 6 122 12,7 35,1 17,5 6,85 54,0 17,5 102 9,65 38,1 0.24
-- 18 8 159 19,6 41.1 20,6 8,65 81,0 20,6 135 11,9 44,5 0.51
04B0210 18 9-10 159 19,6 41,1 20,6 10,4 81,0 20,6 135 11,9 44,5 0.59
04B0220 23,1 11-12 198 24,9 51,0 25,4 12,2 108 25,4 170 14,2 51,0 0.94
04B0230 23,1 13 198 24,9 51,0 25,4 14,0 108 25,4 170 14,2 51,0 0.94
-- 29,5 16 241 31,8 60,5 30,2 17,0 135 31,8 207 17,3 57,0 2.05
04B0240 29,5 14 241 31,8 60,5 30,2 15,5 135 31,8 207 17,3 57,0 2.12
04B0250 36,1 18-20 294 39,4 70,0 35,1 20,3 162 38,1 254 20,3 70,0 3.62
-- 39,4 22 341 43,2 79,5 41,1 23,9 189 44,5 295 23,9 82,5 5.23
-- 45,7 24-26 393 50,5 93,5 51,0 26,9 216 51,0 340 26,9 95,5 8.07
04B0254 52 28 440 57,0 105 57,0 30,2 245 57,0 381 30,2 108 11.5
04B0255 58,5 32 484 64,5 114 63,5 33,8 272 63,5 419 31,0 119 16.1
-- 65 34-36 532 71,0 127 63,5 36,8 297 63,5 461 35,1 133 19.8
-- 71,5 38-40 589 78,0 140 70,0 40,1 325 76,0 502 43,4 145 26.5
-- 77,5 44 676 86,0 170 89,0 47,2 378 89,0 584 53,6 171 40.3
-- 90,5 48-52 799 100 203 95,5 53,5 432 102 683 60 203 66
