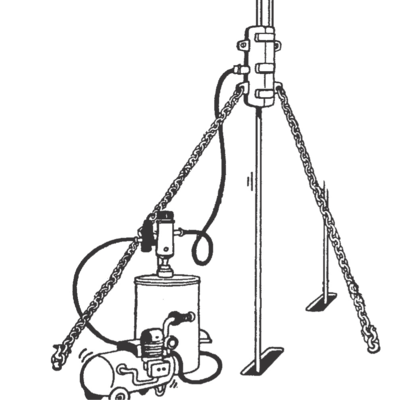

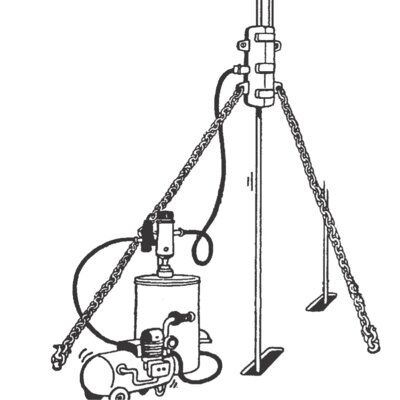

General: A high pressure equipment which lubricate all ropes both outside and inside. The equipment is portable, but can also be permanent installed.
Properties: Delivers with high-lift pump with cap, 3m 1/2" tube, lubrication booth excl compactions and 2 pcs of chain slings.

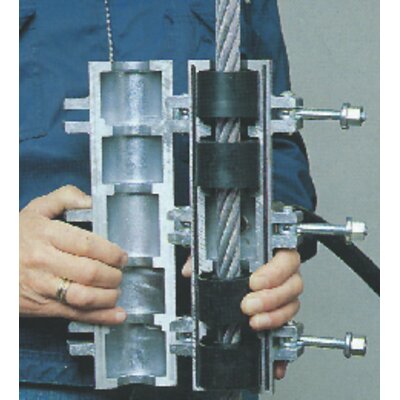

Compactions: For model MWL0435 there are 16 sizes with 2 mm class interval and for model MWL3677 there are 14 sizes with 3 mm class interval.

Select a row from the table below, then click the add to quote button
Art No Code For rope Ø (mm) Pump capasity kg/min Weight
kg
CAD
02.57MWL0435 MWL0435 4-35 8-10 3.6
02.57MWL3677 MWL3677 36-77 8-10 5.9
