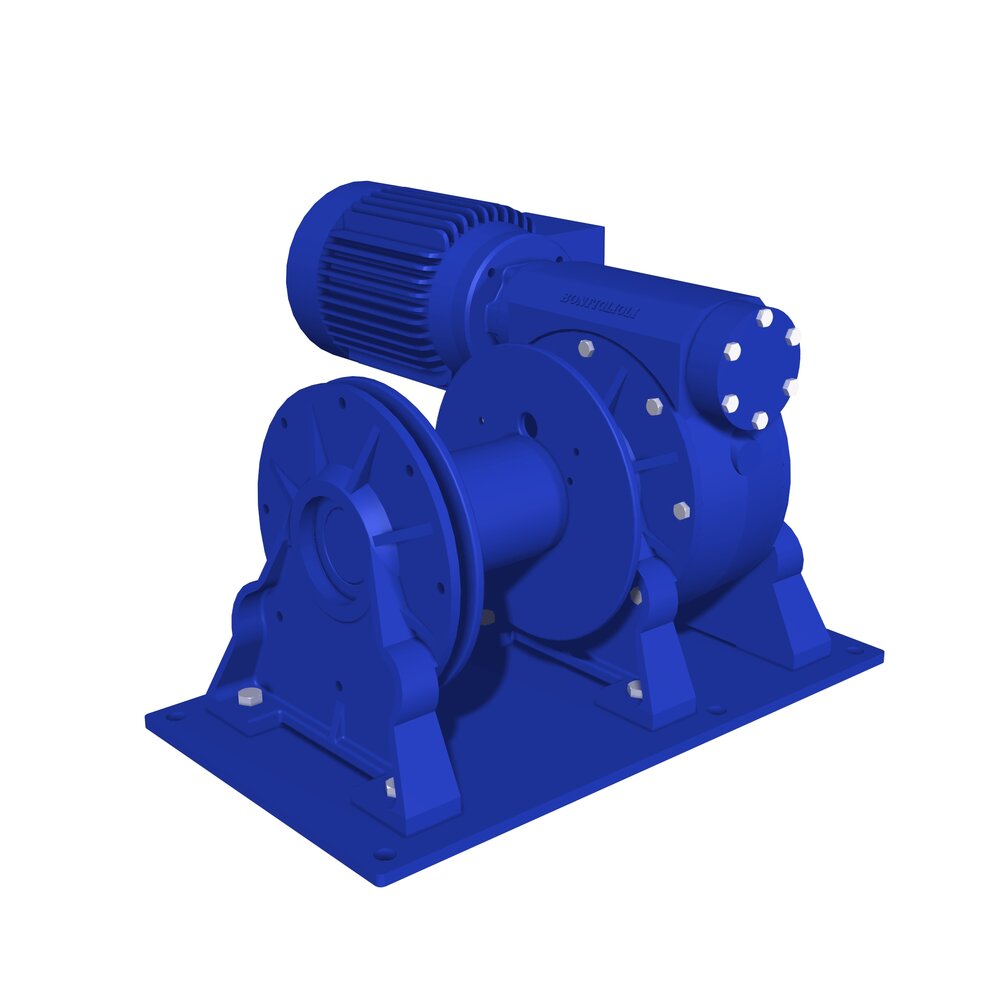

Electric Wormgear type MCW


A range of electric self-braking wormgear winches developed for heavy dutypulling and traversing duties up to 2,800 kg. Due to the self-braking wormgears the winches are suitable for pulling up a slope. A brake is available as an option for accurate positioning or repetitive lifting applications up to 2.000 kg.

  • IP 54 400 VAC/ 3 phases / 50 Hz non-braked motor
  • Steel drum (not grooved) with cable fixing point at flange
  • Single drum support (MCW 250, MCW 500)
  • Two drum supports (all other models)
  • Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
  • FEM/ISO Class: T2-L2-M2


  • Braked motor (aluminium or cast iron)
  • IP 56 TENV cast iron motor for marine applications
  • 220 single-phase motors (up to MCW 750)
  • 24 VDC motors
  • Explosion proof motors
  • Protective steel motor cover
  • Manual or remotely controlled disengaging clutch
  • Band brakes
  • Grooved drum - Drum press roller
  • Alternative Speeds
  • Alternative drum dimensions / split drums/ additional rope anchors / etc.
  • Drum Guards
  • Emergency Cranking
  • Marine / offshore coating systems

Control options:

  • IP 65 direct pendant remote control with emergency stop (up to 1.5kW 220 V AC / 1 phase or 2.2kW 400 V AC / 3 phase)
  • IP 55 control box with low-voltage IP 65 remote control built acc. to NEN 1010
  • Load limiter
  • Frequency inverter for variable speed control
  • wireless radio control systems
  • Limit switches
  • Slack wire switches
  • Features: Self breaking wormgear transmission
