Kito

General: The KITO chain block CX has a light-weight aluminium housing, and is the size of a coaster. The hooks are suitable for a larger intake and its compact measures enables maximum lifting height. Flush-mounted screws at the housing reduce the injury risk. The standard chain block is equipped with an overload protection.



  • Material: High impact aluminium housing, nickel-plated load chain in grade 10.
  • Marking: Type plate with WLL, CE-marking and serial number.
  • Finish: Surface treated aluminium.
  • Safety factor: 4:1.

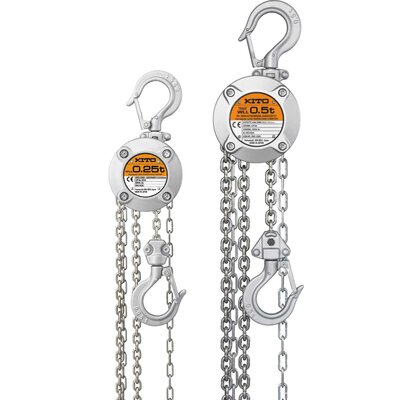

Kito CX 250 kg og 500 kg

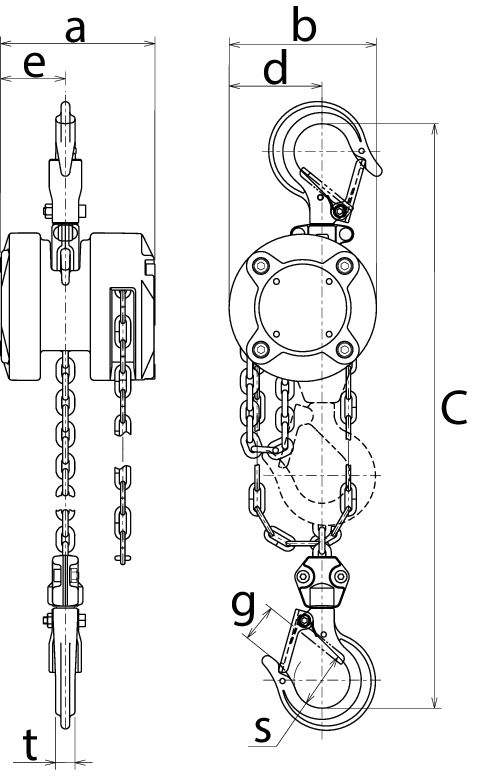

Kito CX003 drawing
Select a row from the table below, then click the add to quote button
Art No Code WLL Ton Lifting height A (mm) B (mm) C (mm) D (mm) e (mm) g (mm) t (mm) s (mm) Load chain Ø (mm) Chain fall Hand pull to lift full load in daN Weight kg
16.10CX003S025020 CX003 0.25 2.5 88 84 217 53 37 21 11 32 3,2 x 9,0 1 14,7 2.4
16.10CX005S025020 CX005 0.5 2.5 102 102 260 66 44 24,5 12 35,5 4,3 x 12,0 1 18,6 4.5
* Weight with standard lift 2,5 m.
* Weight with standard lift 2,5 m.
