Bulldog

Ideal toolbox accessory
Up to 250kg capacity
Material:
Marking:
WLL, code and CE marking.


  • Features: Lightweight compact design
  • Finish: Galvanised/ Painted
  • Safety factor: 4:1

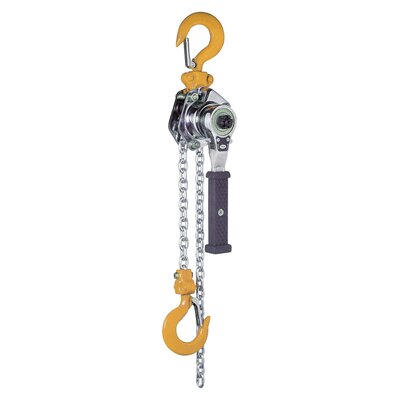

Bulldog 250 kg
Lever block L D
Select a row from the table below, then click the add to quote button
WLL
Ton

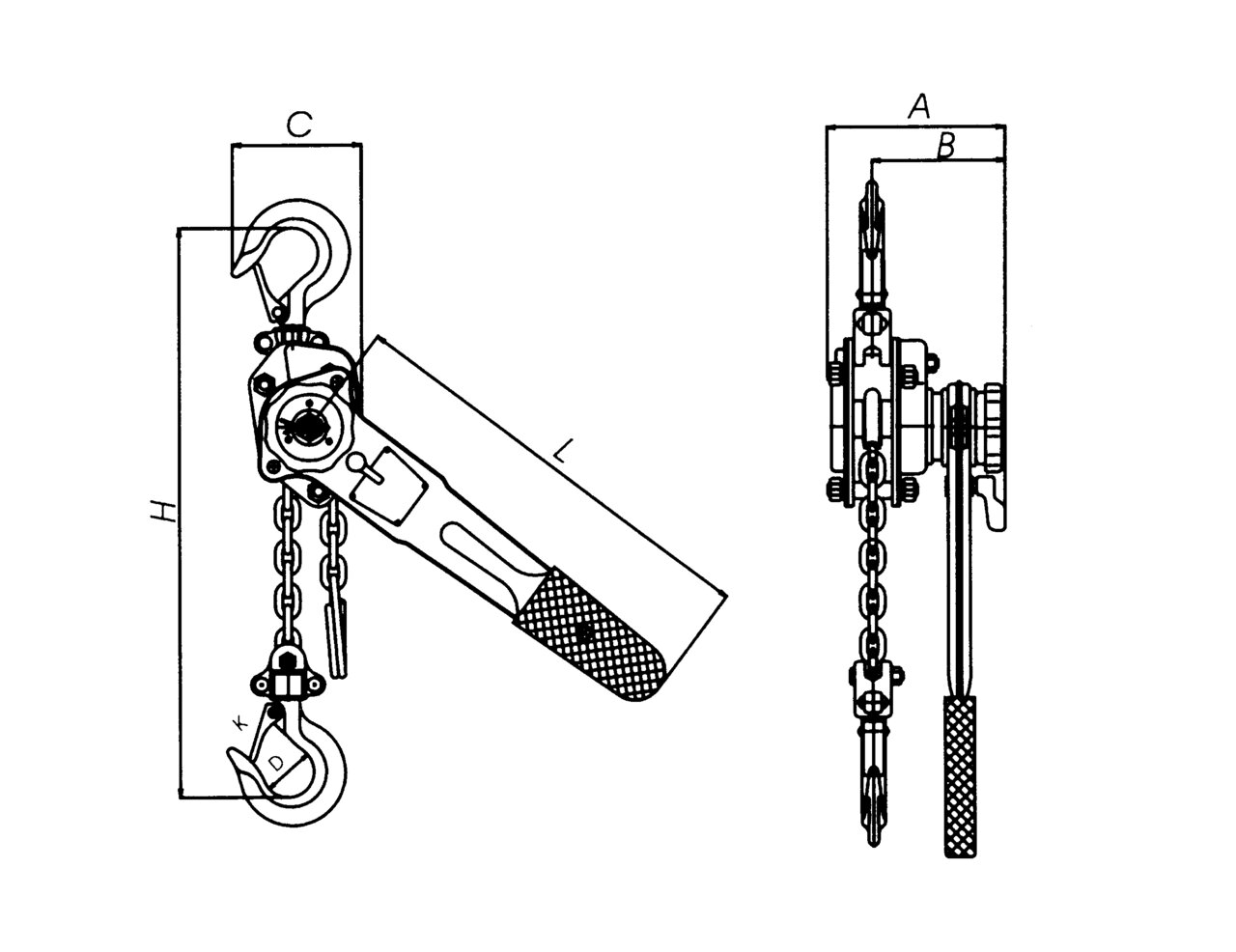

A (mm) B (mm) C (mm) D (mm) H min (mm) L (mm) K (mm) Product code (code) Standard lift (m) Running test load (KN) Effort required to lift load (N) Strands of load chain Load chain Ø (mm) Net weight (kg) Packing measurement (cm) Extra weight per metre, extra chain (kg) CAD
0.25 92 72 85 30 230 160 25 06B0010 1 3.2 250 1 4 1.8 22 x 7 x 9.5 0.41
