Hydraulic Tirfor™ machines are portable motorised hoists used with maxiflex wire rope. They can be used to lift, pull and position loads over great distances depending on the wire rope length. They are suitable for use in numerous configurations and are the ideal solution for use in professional applications; they are operated by an hydraulic cylinder powered by either an electrical power pack or a petrol motor power pack

Option: the load capacity of the Tirfor® system can be increased by using sheave blocks.

  • Low weight-quick installation
  • No limitation in terms of wire rope length
  • Easy to use, light-weight, robust, powerful, increased wear-resistance
  • Increase load capacity with sheave blocks
  • Overload protection
  • Precise load positioning within millimetres
  • Marking: According to standard
  • Standard: EN 13157
    TU32H Hydraulic Tirfor

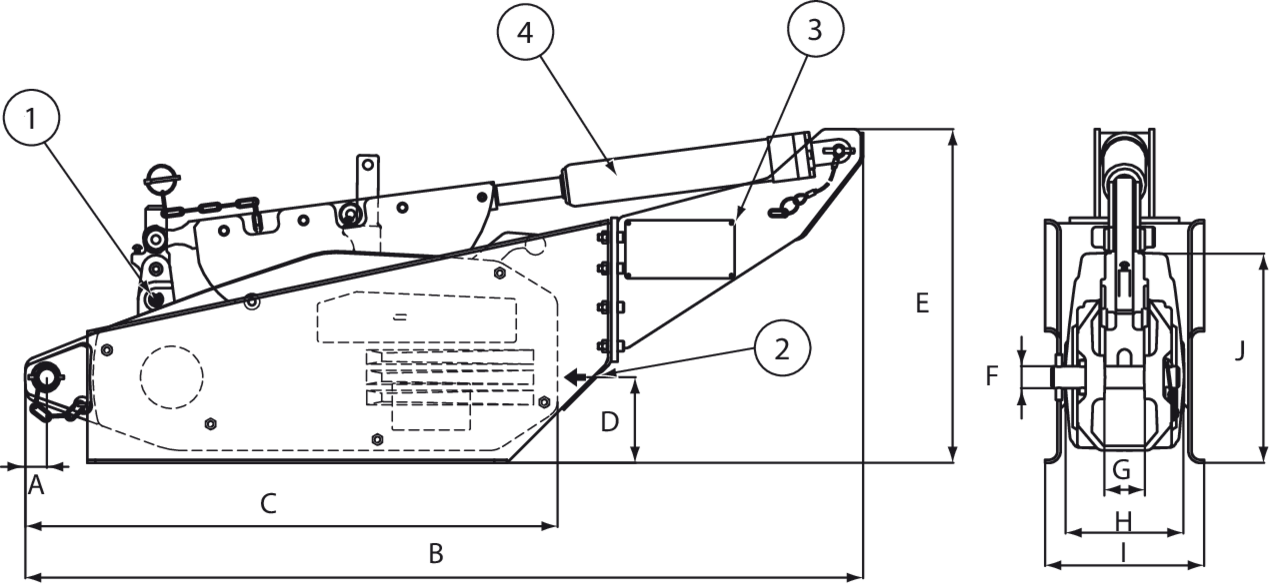

    TU32H_dwg
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    kg
    Ø wire rope
    mm
    Effort to control lever* Forward
    kg
    Effort to control lever* Reverse
    kg
    Rope travel* Forward
    mm
    Rope travel* Reverse
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    I
    mm
    J
    mm
    Weight
    kg
    -- 3 200 16,3 54 25 30 48 28 1,07 680 110 430 28 50 150 205 270 56
    Nominal WLL.
