Home / Products / Steel Wire Rope Accessories / Thimbles / Solid Thimble BS 464:1958

Solid Thimble BS 464:1958





Standard:

  • Features: Thimbles to give protect the eye of the wire rope
  • Material: Steel
  • Marking: Manufacturer's symbol
  • Finish: Galvanised
    Solid Thimble
    Solid Thimble
    Select a row from the table below, then click the add to quote button

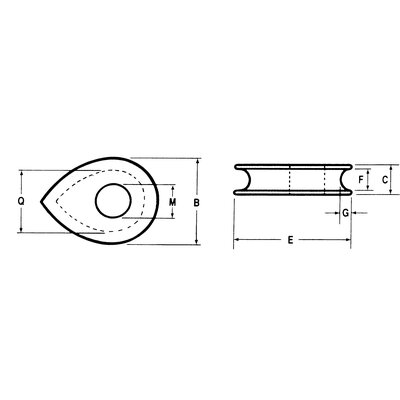

    Part Code Rope diameter
    mm    		 Q
    mm    		 B
    mm    		 C
    mm    		 E
    mm    		 F
    mm    		 G
    mm    		 M max.
    04D0220 8 25,4 34,9 11,1 47,6 7,9 4,8 12,7
    04D0230 9 31,8 44,4 14,3 57,2 11,1 6,4 15,9
    04D0240 11 38,1 52,4 17,5 69,8 12,7 7,1 19
    04D0250 13-14 44,4 60,3 20,6 82,6 14,3 7,9 22,2
    04D0260 16 50,8 69,8 22,2 95,2 15,9 9,5 25,4
    18 57,2 79,4 25,4 105 19 11,1 28,6
    04D0270 19 63,5 85,7 28,6 118 22,2 11,1 31,8
    04D0280 22 69,8 95,2 31,8 127 23,8 12,7 34,9
    04D0290 24 76,2 105 33,3 140 25,4 14,3 38,1
    04D0300 26 82,6 114 36,5 152 27 15,9 41,3
    04D0310 28 88,9 124 39,7 165 30,2 17,5 44,4
    04D0320 32 102 140 44,4 191 33,3 19 50,8
    04D0330 35 114 156 50,8 210 38,1 20,6 57,2
    04D0340 38 127 171 57,2 235 41,3 22,2 63,5
