Kito

General: The standard KITO LB Lever Hoist is supplied with a freewheel safeguard and the bottom hook is riveted in four places. The lever hoists are built with premium grade components for long life in demanding industrial applications. Its double-reduction gearing reduce size and weight and requires minimum power to operate. Sealed gears and brake are protected against damage from dust and water. Open load sheave allows easy inspection and cleaning without dismantling the unit.

Options:

  • Friction clutch
  • Overload signal
  • Wire rope clip
  • Shipyard hook
  • Without freewheel mechanism
  • Material: High impact steel housing, nickel-plated load chain grade V (G100) according to EN 818-7.
  • Marking: WLL, code and CE marking.
  • Finish: Painted.
  • Safety factor: 4:1.

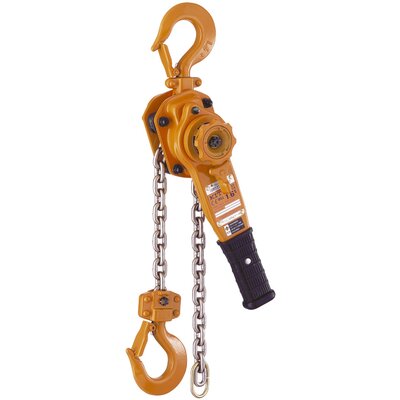

Kíto LB016

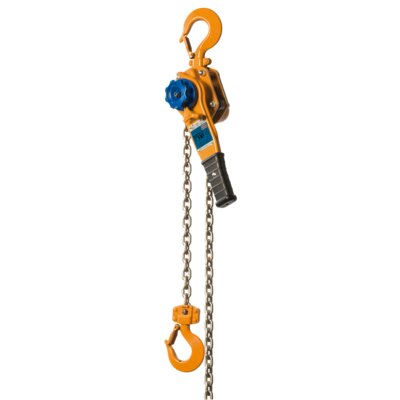

KITO LB016OF

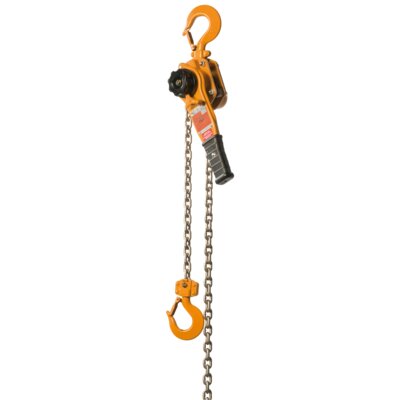

KITO LBOLL

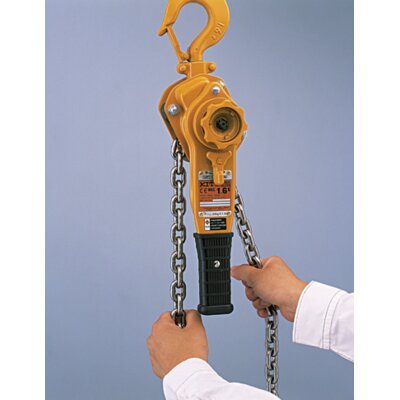

KITO Freewheel1

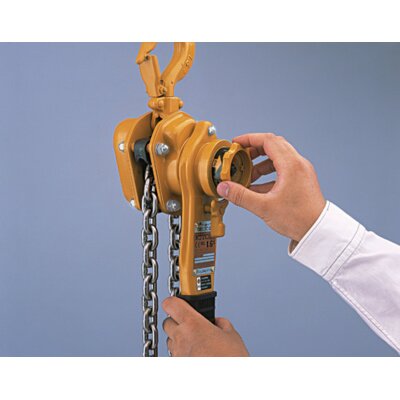

KITO Freewheel2

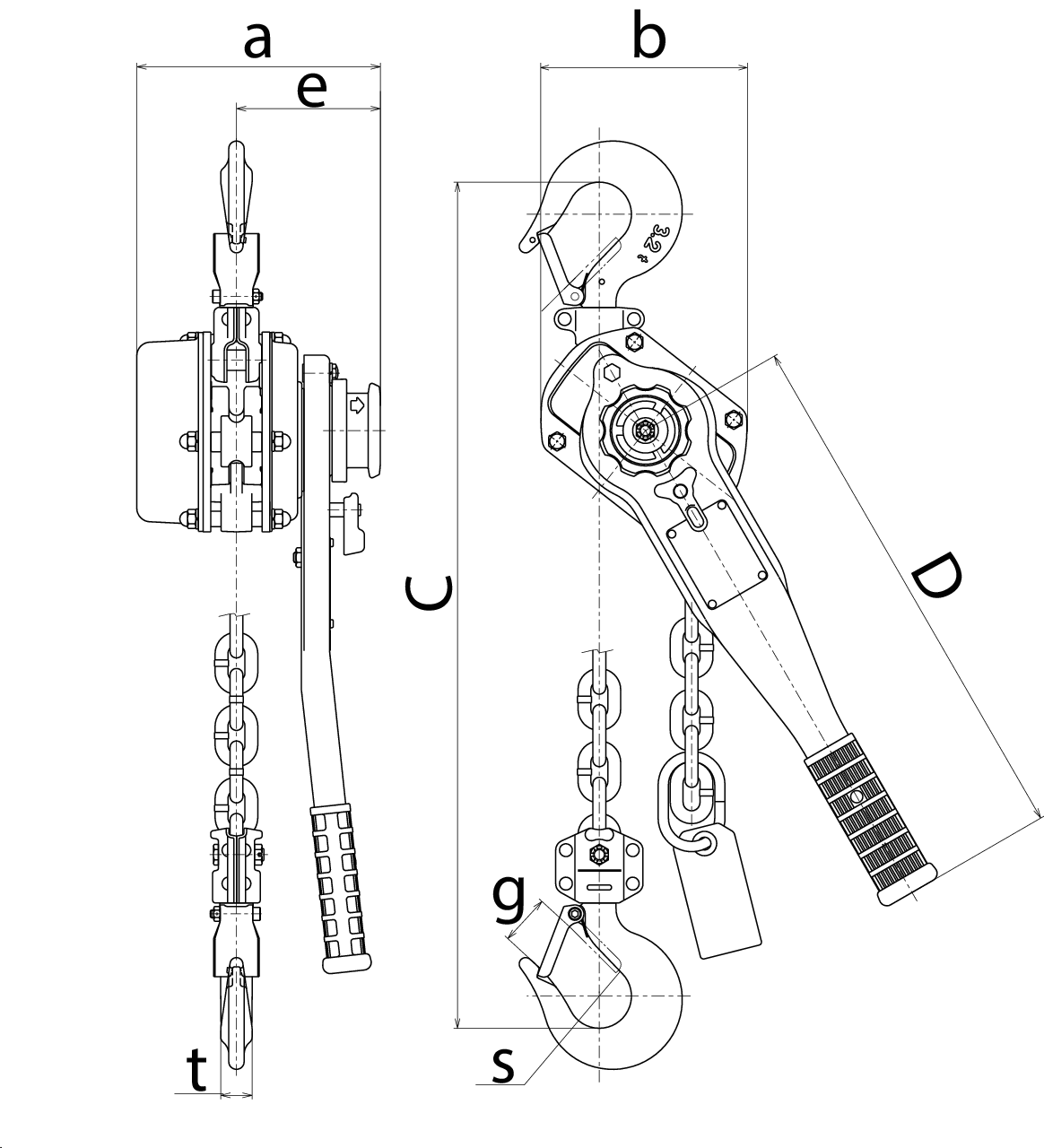

Kito Drawing
Select a row from the table below, then click the add to quote button
Art No Code WLL Ton Lifting height A (mm) B (mm) C (mm) D (mm) e (mm) g (mm) t (mm) s (mm) Hand pull to lift full load daN Load chain Ø (mm) Chain falls Weight kg
16.20LB008S015 LB008 0.8 1.5 144 119 280 245 97 23,5 14,0 35,5 28,4 5,6 x 15,7 1 5.7
16.20LB010S015 LB010 1 1.5 144 119 300 245 97 29,0 15,0 42,5 35,3 5,6 x 15,7 1 5.9
16.20LB016S015 LB016 1.6 1.5 159 126 335 265 100 32,0 19,0 42,5 33,3 7,1 x 19,9 1 8
16.20LB025S015 LB025 2.5 1.5 173 150 375 265 102 36,5 21,0 47,0 36,3 8,8 x 24,6 1 11.2
16.20LB032S015 LB032 3.2 1.5 190 159 395 415 112 39,0 24,5 50,0 36,3 10,0 x 28,0 1 15
16.20LB063S015 LB063 6.3 1.5 190 217 540 415 112 50,0 34,0 60,0 37,2 10,0 x 28,0 2 26
16.20LB090S015 LB090 9 1.5 190 304 680 415 112 72,5 41,5 85,0 38,2 10,0 x 28,0 3 40
*Weight with 1,5 m standard lifting height.
The last 2 digits in the Art No indicates the lifting height.
