Bulldog

Ideal toolbox accessory
Up to 500kg capacity
Material:
Marking:
WLL, code and CE marking.


  • Features: Lightweight compact design
  • Finish: Baked powder coating
  • Safety factor: 5:1

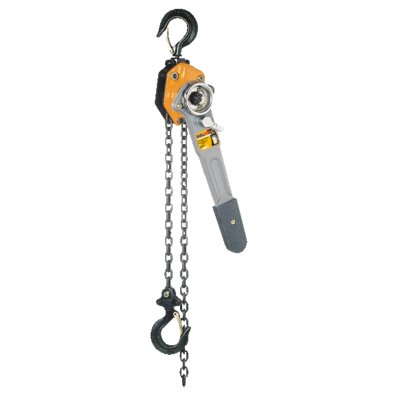

oz 500 lever hoist
Lever block L D
Select a row from the table below, then click the add to quote button
WLL
Ton

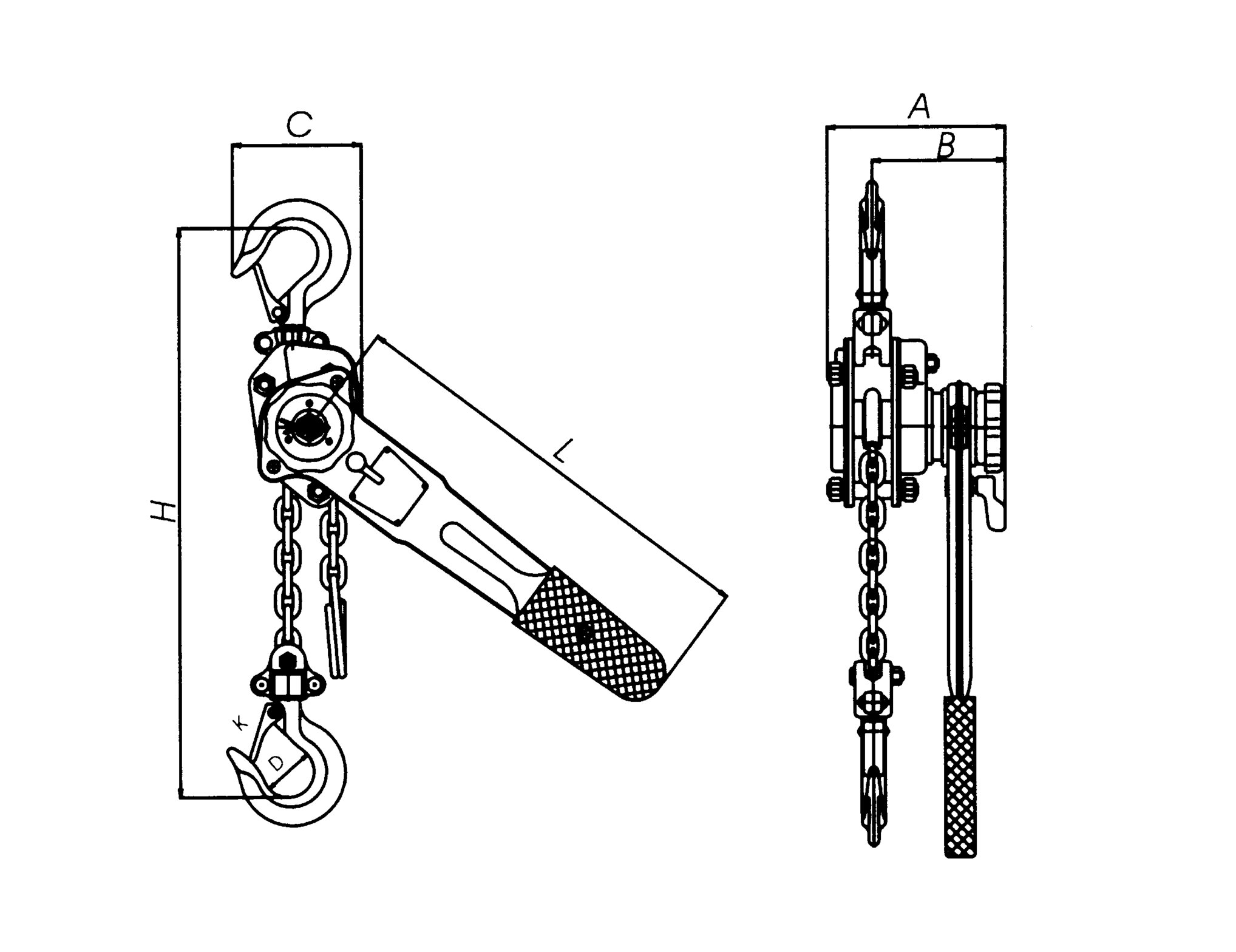

Product code Standard lift (m) Running test load (KN) Effort required to lift load (N) Strands of load chain Load chain Ø (mm) Net weight (kg) Packing measurement (cm) Extra weight per metre, extra chain (kg) A (mm) B (mm) C (mm) D (mm) H min (mm) L (mm) K (mm) CAD
0.5 06B0020 1.5 6.3 340 1 5 1.8 35.5 x 9.5 x 11.5 0.52 105 78 80 35 260 300 30

Download CAD

Description
