Powertex
  • The product is equipped with RFID chip
  • Cr6+ Free

POWERTEX PCB-S2 Chain block is a hoist of high quality which is durable and easy to operate using the ergonomic hand chain.

Features:

  • Each hoist is dynamic proof load tested 1,5 x WLL before leaving the factory
  • Compact, lightweight construction.
  • Sprocket wheel equipped with needle bearings and drive shaft supported by needle bearing and slide bearing inside to ensure smooth and efficient operation
  • Safe, well covered automatic load reaction brake
  • Equipped with 2 brake pawls and 4 brake springs (double safety compared to EN 13157 requirement)
  • Fine calibrated European made COROLIM® protected load chain for smooth operation
  • The unique surface treatment gives excellent corrosion protection and quiet run
  • Swivel hooks at both ends makes in line positioning easy
  • Hooks are designed to open at overload instead of breaking
  • Hooks fitted with heavy duty steel safety latches
  • Hook have Deformation Check Dots forged into side for overload detection
  • RFID equipped (chip) for easy service and inspection
  • QR code for on-site access to Multilanguage user manuals
  • Test certificate and Declaration of Conformity enclosed with each hoist
  • Spare parts available

Option:

  • Chain bag
  • Material: Durable all steel construction
  • Marking: According to standard, CE-marked, POWERTEX, Model, WLL, Chain, Serial number, User manual/QR code
  • Temperature range: -10°C up to +50°C
  • Finish: Red powder coated body and plated frame components
  • Standard: EN 13157, EN 818-7
  • Safety factor: 4:1

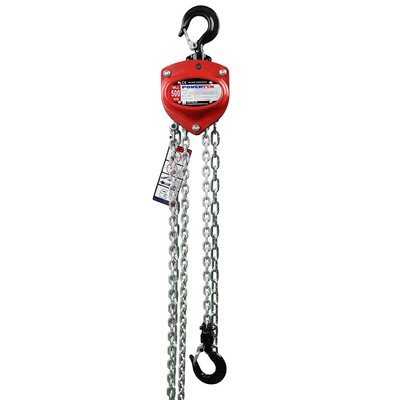

Chain Block POWERTEX PCB-S2

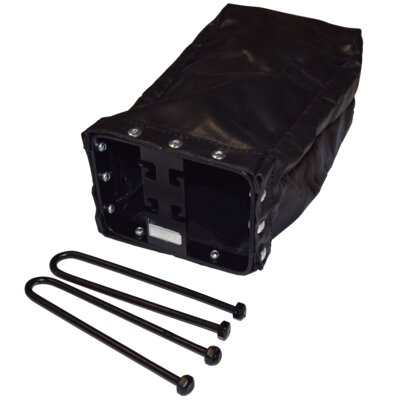

POWERTEX chain bag

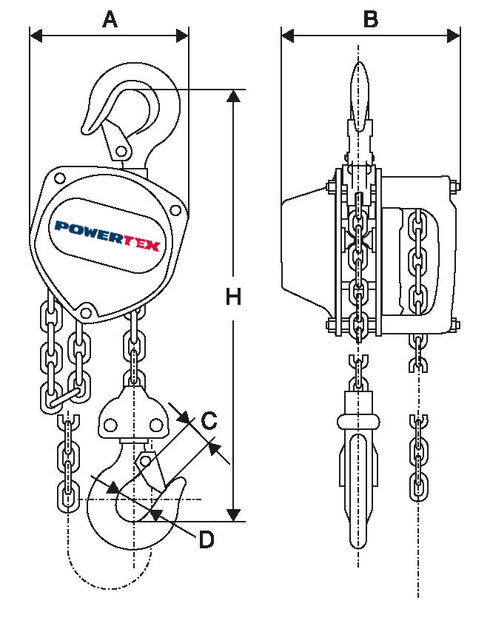

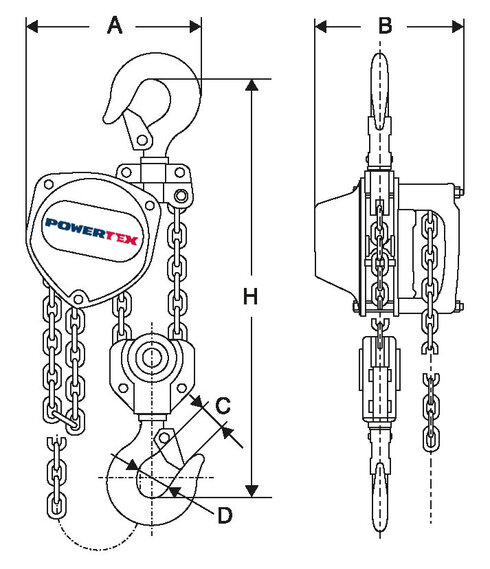

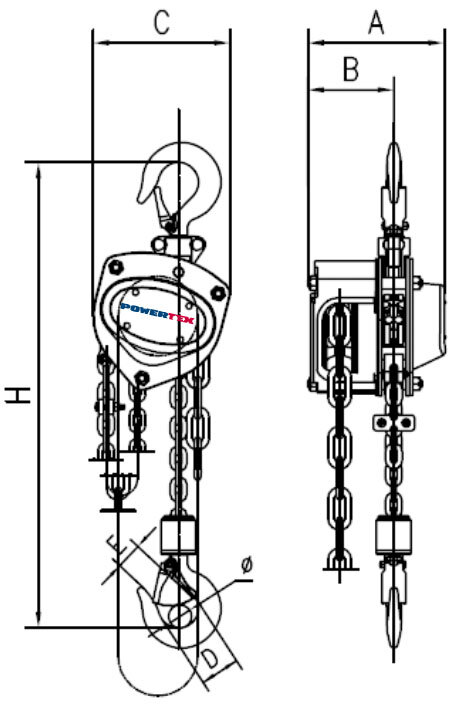

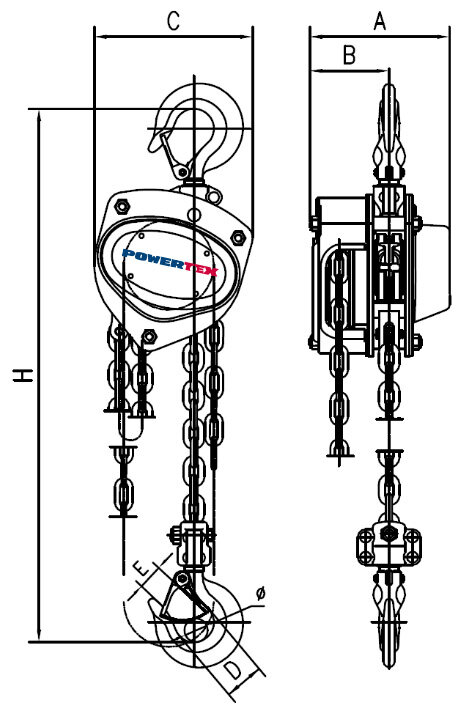

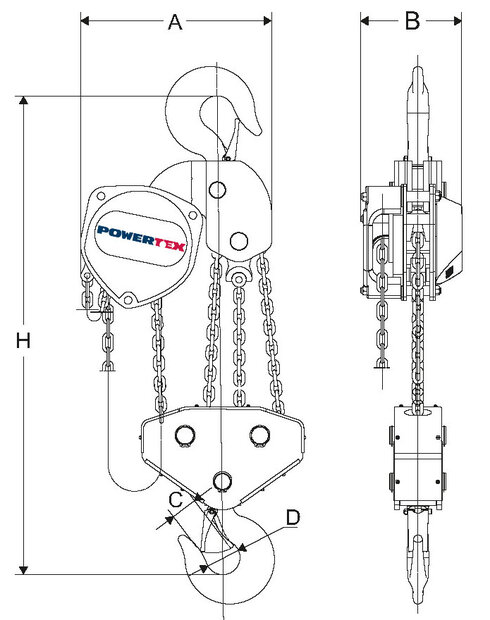

The POWERTEX Chain Hoist PCB S2 250 KGS measurements. 0.25 T POWERTEX PCB S2 Chain hoist 500 kg to 3 tons measurements. 0.5 - 2 T The POWERTEX PCB S2 3.5 tons chain hoist measurements. 3-5 T
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height
m
Number of falls Model Load chain
mm
Hand chain
mm
Hand force max.
kg
A
mm
B
mm
C
mm
D
mm
E
mm
H min
mm
ø
mm
Weight
kg
CAD
16.10PCBS20025030 0,25 3 1 PCB-S2/250KG 4,0 x 12,0 5,0 x 23,7 19,4 106 68 108 31 20 280 18 6,4
16.10PCBS20050030 0,5 3 1 PCB-S2/500KG 5,0 x 15,0 5,0 x 23,7 21,5 128 75 130 35 22 280 20 8,9
16.10PCBS20100030 1 3 1 PCB-S2/1000KG 6,3 x 19,0 5,0 x 23,7 29,1 142 76 150 40 26 330 25 12
16.10PCBS20200030 2 3 1 PCB-S2/2000KG 8,0 x 24,0 5,0 x 23,7 36,2 175 90 185 52 35 385 33 19,5
16.10PCBS20300030 3 3 2 PCB-S2/3000KG 7,1 x 21,0 5,0 x 23,7 34,7 158 80 220 56 37 510 36 22,8
16.10PCBS20500030 5 3 2 PCB-S2/5000KG 9,0 x 27,0 5,0 x 23,7 40,8 183 90 255 67 43 615 43 36,3

Weight: With standard 3 m lifting height
Art. No. + BK = Blackline
The hand chain is by default ½ meters shorter than the lifting height
Other lifting heights on request
