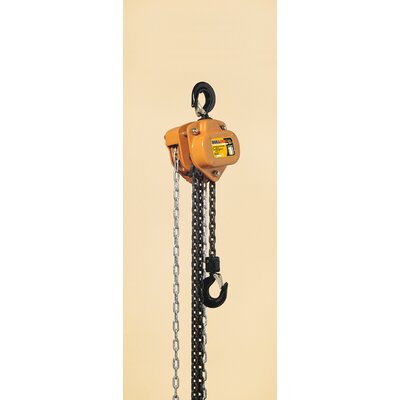

Bulldog


Super strength alloy loadchain.
Fully machined liftwheel.
Minimum headroom.
Minimum effort to raise maximum load.
Cast steel safety latches.
Lower hook complete with thrust race.
Fully enclosed gear train.
Weather protected automatic Weston brake with unique Twin Pawls.
Galvanised handchain as standard.




Standard: EN 13157: 2004

Loadsafe Overload Protection
Certex have introduced overload protection for their quality range of lever hoists and chain blocks. When lifting with conventional blocks there is no safeguard incorporated in the design of the chain block for the prevention of overload damage.
Unfortunately it is all too common practise to extend the leverage by adding either a longer pipe to the lever hoist handle or using additional personnel to increase the manual effort on the hand chain when the lifting effort becomes too great.
The Bulldog range has a simple solution that prevents a load being lifted if it is excess of a preset level. Using a special clutch mechanism, this prevents the equipment from being damaged by overloading.
Certex are the pioneers in offering this feature as standard for their range of chain blocks and lever hoists. As the additional cost to the operator will be minimal this offers a full proof safety system in the prevention of damage to the equipment by overloading, thus avoiding expensive repair costs

  • Features: Lightweight robust construction.
  • Material: Chain and Hook Grade 8
  • Marking: WLL, code and CE marking.
  • Finish: Durable baked enamel paint protection
  • Safety factor: 4:1
Chain block (2)
0.5, 1, 1.5 & 2 tonne 0.5, 1, 1.5 & 2 tonne 3, 5 & 10 tonne 3, 5 & 10 tonne
Select a row from the table below, then click the add to quote button
Part Code WLL
ton

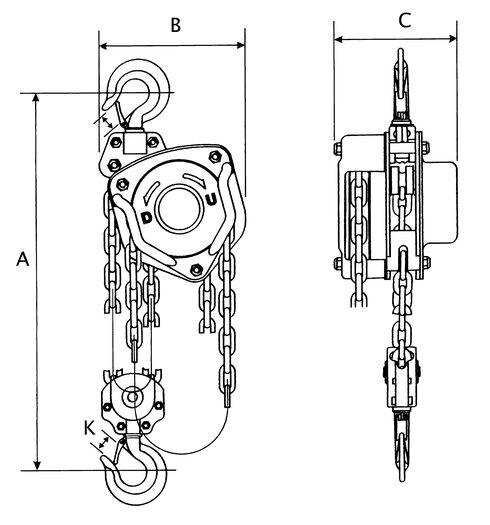

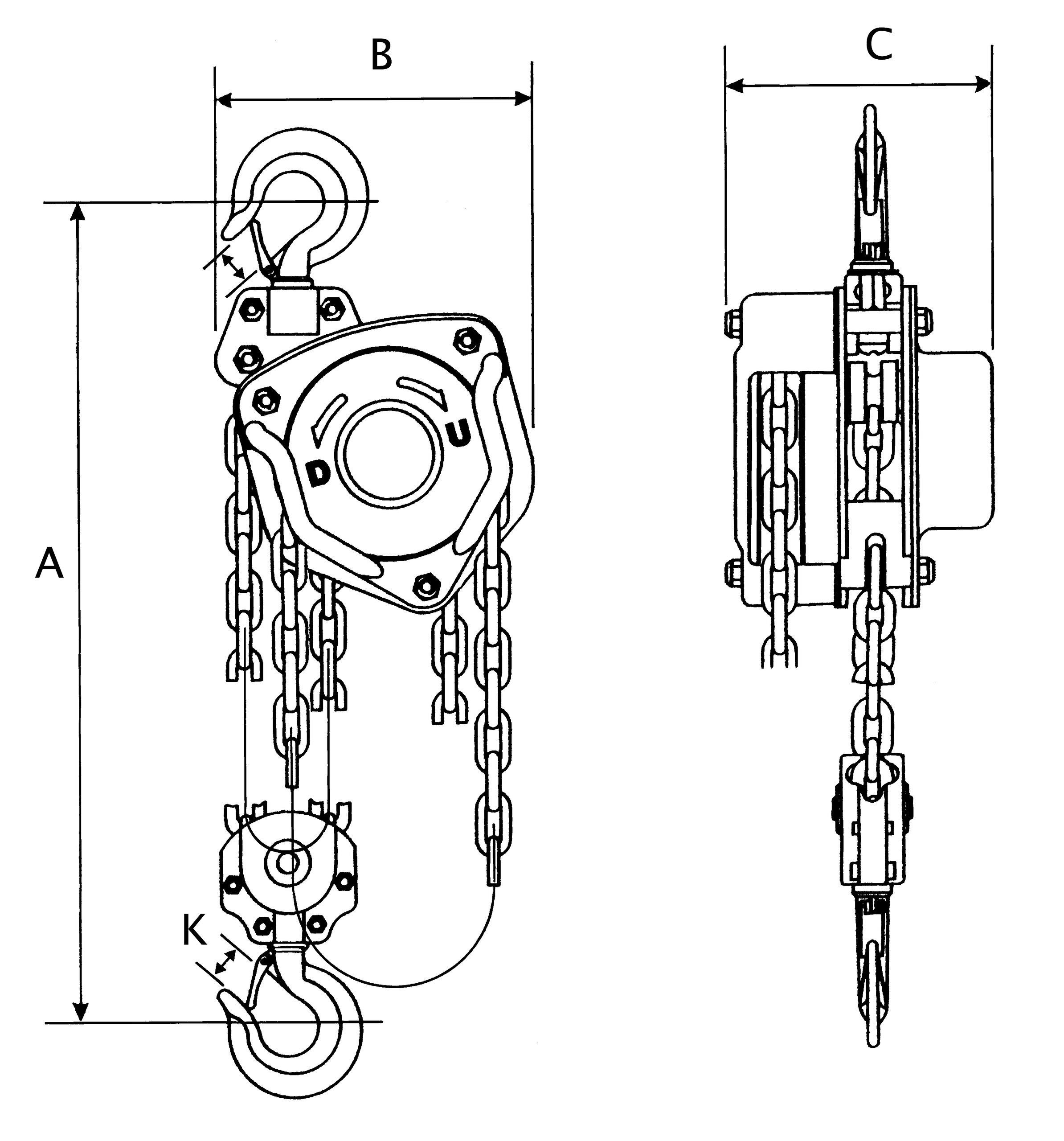

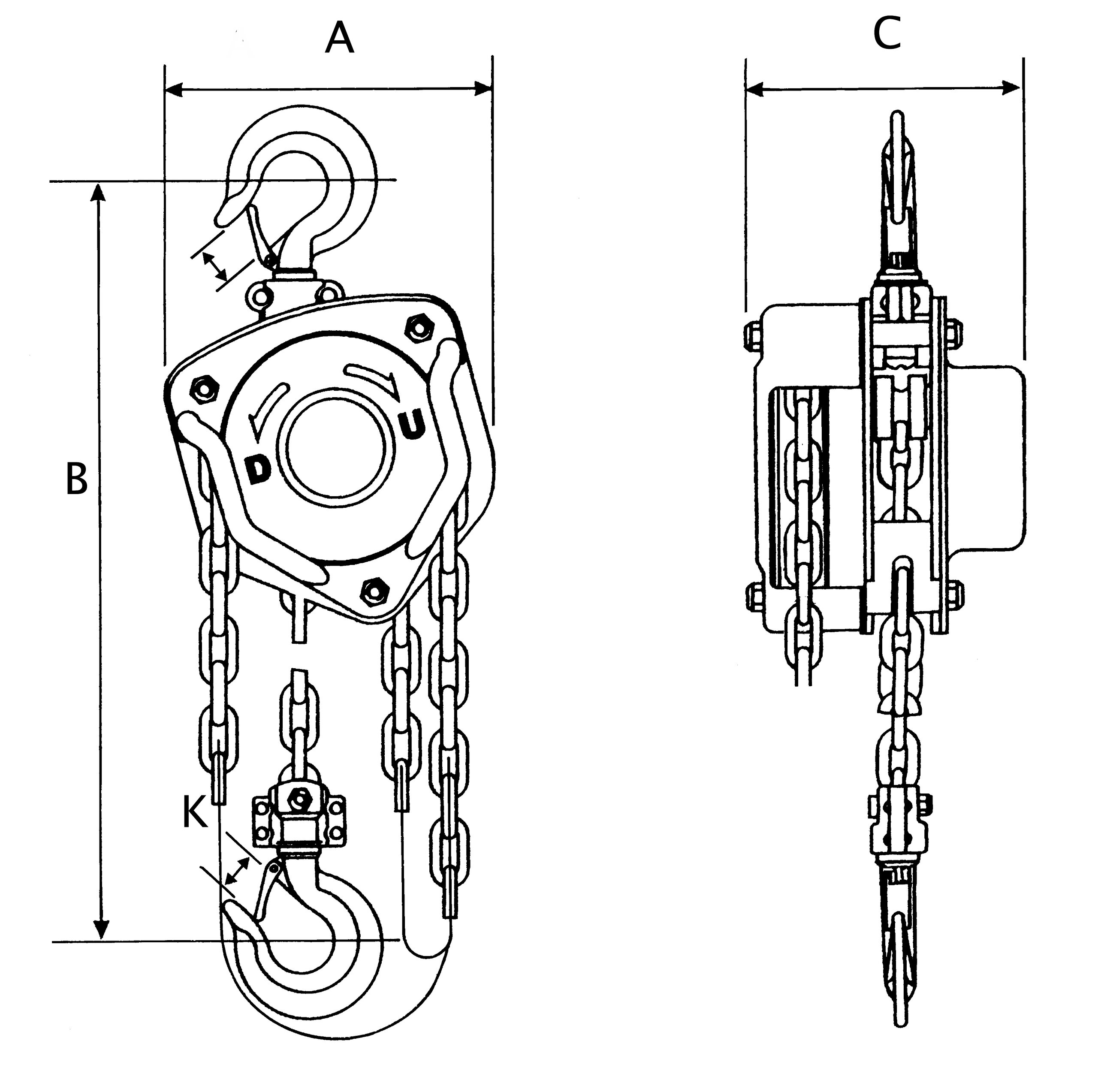

standard lift falls of chain effort to lift SWL net weight loadchain diameter clearance dimensions (mm) a headroom clearance dimensions b width (mm) clearance dimensions mm c depth clearance dimensions mm hook opening upper clearance dimensions mm hook opening lower
06A0020 0.5 6 m 1 23 kg 10 kg 6 mm 270 127 131 30 30
06A0010 0.5 3 m 1 23 kg 10 kg 6 mm 270 127 131 30 30
06A0040 1 6 m 1 30 12 kg 6 mm 317 158 140 28 28
06A0030 1 3 m 1 30 kg 12 kg 6 mm 317 158 140 28 28
-- 1.5 3 m 1 32 kg 13 kg 8 mm 399 187 161 36 36
06A0080 2 6 m 1 35 kg 22 kg 8 mm 414 187 161 33.5 33.5
06A0070 2 3 m 1 35 kg 22 kg 8 mm 414 187 161 33.5 33.5
06A0120 3 6 m 2 32 kg 27 kg 8 mm 465 210 161 40 40
06A0110 3 3 m 2 32 kg 27 kg 8 mm 465 210 161 40 40
06A0140 5 6 m 2 41 kg 46 kg 10 mm 636 253 161 50 50
06A0150 10 6 m 4 39 kg 10 mm 750 373 184 64 64
• N.B. Specifications and dimensions for 20 t available on application.
