Crosby

Features:

  • Excellent welding qualities.
  • Widely used on farm machinery, trucks, steel hulled marine vessels and material handling equipment.
  • Reference American Welding Society specifi cations for proper welding procedures.
  • Material: Forged Steel — Quenched and Tempered.
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

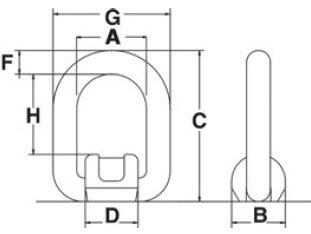

Part Code Minimum fillet weld size
mm
WLL
ton 4:1
WLL
ton 5:1
A
mm
B
mm
C
mm
D
mm
F
mm
G
mm
H
mm
Weight
kg
CAD
-- 3 1,2 1 40 36 83 35 13 66 42 0,4 -
-- 3 3,2 2,5 45 44 99 42 18 81 48 0,6 -
-- 6 5,3 4,2 55 50 123 49 22 99 57 1,2 -
-- 6 8 6,4 70 64 144 64 26 122 67 2,4 -
-- 8 15 12 97 90 193 86 34 165 94 5,9 -
