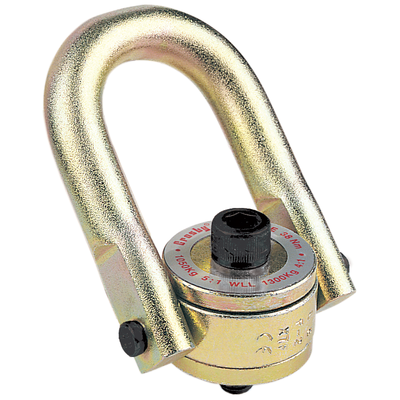

Metric Swivel Hoist Rings Crosby HR-125M

Crosby

Features:

  • The Working Load Limit and Recommended Torque value are permanently stamped into each washer.
  • Washer is color coded for easy identification: Silver - Metric thread.
  • Bolt specification is a Grade 12.9 Alloy socket head cap screw to DIN 912.
  • Designed to be used with ferrous workpiece only.

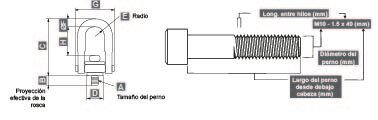

  • BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the blueprint. Illustration shows meaning of each dimension given.
    • Safety factor: 5:1
    • Grade: 12
    Metric Swivel Hoist Rings Crosby HR-125M
    Metric Swivel Hoist Rings Crosby HR-125M measurements
    Select a row from the table below, then click the add to quote button
    Part Code Torque
    Nm    		 WLL
    ton 4:1    		 WLL
    ton 5:1    		 A
    mm    		 B
    mm    		 C
    mm    		 D
    mm    		 E
    mm    		 ØF
    mm    		 G
    mm    		 H
    mm    		 Weight
    kg    		 CAD
    -- 10 0,5 0,4 M8x1,25x40 16,9 69,9 24,6 11,8 8,5 47,5 29,9 0,17
    05B0720 16 0,55 0,45 M10x1,50x40 16,9 69,9 24,6 11,8 8,5 47,5 28,1 0,18
    05B0730 38 1,3 1,05 M12x1,75x50 16,9 123 49,8 22,3 17,5 85,1 60,4 1,05
    05B0740 81 2,4 1,9 M16x2,00x60 26,9 123 49,8 22,3 17,5 85,1 56,3 1,11
    05B0750 136 2,7 2,15 M20x2,50x65 31,9 123 49,8 22,3 17,5 85,1 52,3 1,17
    05B0755 136 3,75 3 M20x2,50x75 27,8 167 75,2 34,7 25,4 124 76,6 3,09
    05B0760 312 5,25 4,2 M24x3,00x80 32,8 167 75,2 34,7 25,4 124 70,5 3,21
    05B0765 637 8,75 7 M30x3,50x120 61,7 222 94,2 44,5 30,5 157 102 6,53
    -- 1 005 13,75 11 M36x4,00x150 54 318 120 60,7 44,5 215 142 16,8
    -- 1 005 15,6 12,5 M42x4,50x160 64 318 120 60,7 44,5 215 136 17,4
    -- 1 350 16,9 13,5 M48x5,00x160 74 318 120 60,7 44,5 215 130 18

    * Individually proof loaded to 2-1/2 times the Working Load Limit based on the 4:1 design factor
    ** The tightening torque values shown are based upon threads being clean, dry and free of lubrication.
    *** Bolt specification is a Grade 12.9 Alloy socket head cap screw to Din 912. All threads are metric (ASME/ANSI B18.3.1m).

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

    To download CAD files, you must provide a valid e-mail address

    Fetching the CAD file...
