• Material: High tensile steel
  • Finish: Self colour
  • Safety factor: MBL equals 5 x SWL

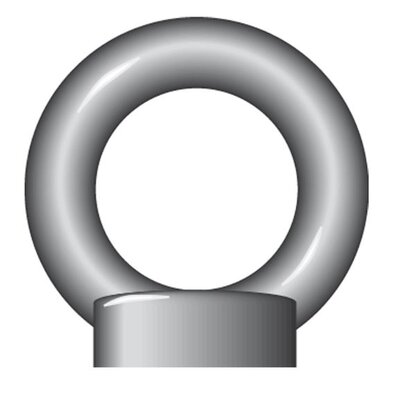

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

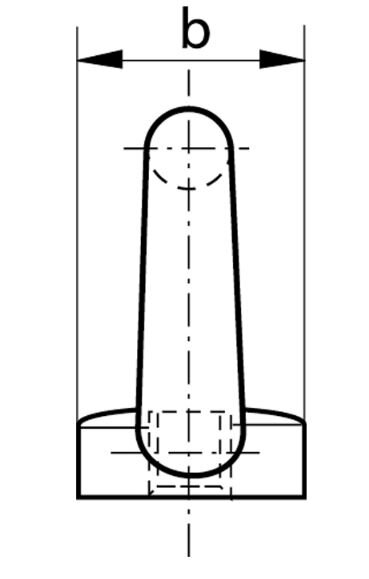

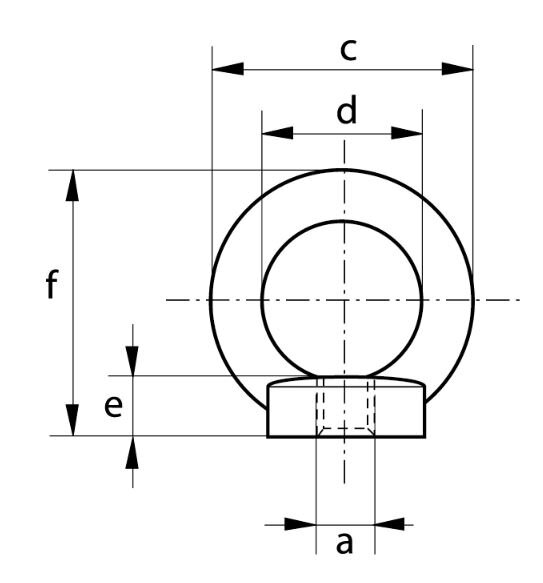

Art No Safe working load (ton) diameter eye inside d (mm) diameter eye b (mm) diameter base c (mm) base height e (mm) Height overall f (mm) Thread a Weight
kg
CAD
27001 0.3 44 13 29 22 78 10 0.25
27002 0.5 44 13 29 22 78 12 0.26
27003 0.8 44 13 29 22 78 16 0.27
27004 1.2 49 16 39 26 84 20 0.45
27005 2.2 52 19 44 38 111 24 0.79
