General:
This IPTK series beam clamp is suitable for use as a temporary tackle eye for horizontal lifting and transportation of steel (H) beams, profiles and structures. Can also be used as upside down attached (temporary) lifting point.

Features:
• Available in capacities of 2 thru 25 metric tons.
• Wide variety of jaw openings available: 75 to 1020 mm”.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• User manual with test certificate is included with each clamp.
• Maintenance and repair kits are available.
• All sizes are RFID EQUIPPED.

  • Material: Steel.
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
    Select a row from the table below, then click the add to quote button

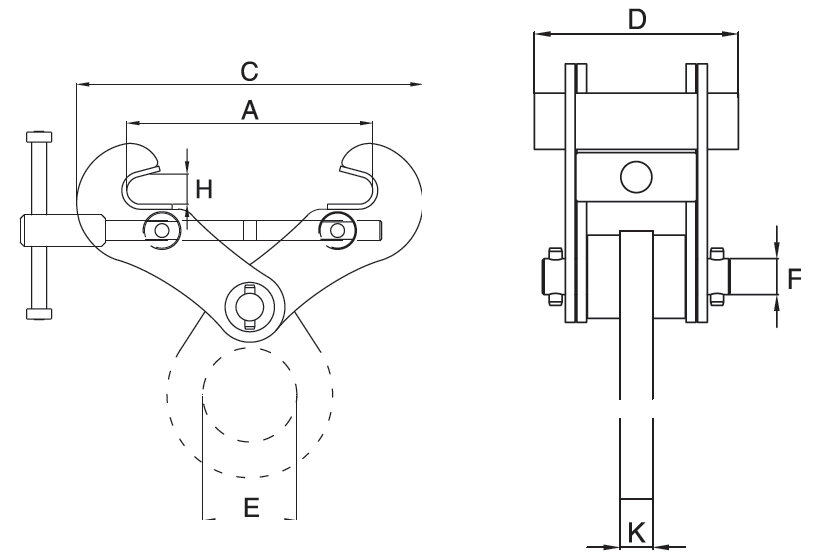

    Part Code WLL
    ton
    Jaw width
    mm
    I P Model. C
    mm
    D
    mm
    E
    mm
    H
    mm
    K
    mm
    Weight
    kg
    CAD
    06D0230 2 75-190 2-IPTK jaw+80 125 75 25 20 6 -
    06D0240 3 75-190 3-IPTK jaw+80 125 75 25 20 6,5 -
    06D0250 4 150-280 4-IPTK jaw+100 125 75 35 20 8,5 -
    06D0260 5 120-350 5-IPTK jaw+195 125 75 40 20 11 -
    -- 25 450-1,020 25-IPTK jaw+220 500 125 76 45 225 -

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

    To download CAD files, you must provide a valid e-mail address

    Fetching the CAD file...
