The McKissick snatch block 421 Champion from Crosby is a snatch block fitted with a shackle. Can be delivered with bronze bushing (BB) and with roller bearing (RB).

Features:

  • Bolt for opening feature is retained, to ensure no lost bolts.
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wire line diameters.
  • Meets or exceeds all requirements of ASME B30.26 including identification ductility, design factor, proof load and temperature requirements.
  • Meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26.
  • Material: Forged steel.
  • Marking: CE-marked

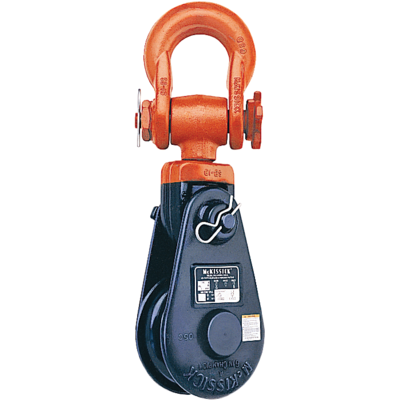

    McKissick 421 Champion Snatch Block shackle fitting single sheave 15 to 60 ton

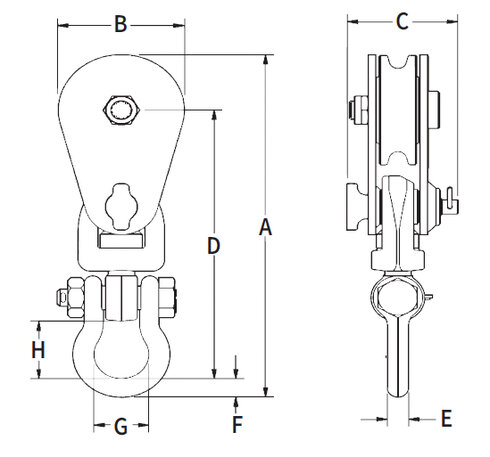

    McKissick 419 Light Champion Snatch Block measurements
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Sheave dia.
    mm
    Bearing Code Wire Rope Size
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    CAD
    -- 15 203 BB 19-22 584 206 129 437 38 44 79 79
    -- 15 203 RB 19-22 584 206 129 437 38 44 79 79
    -- 15 254 BB 19-22 629 257 129 456 38 44 79 79
    -- 15 254 RB 19-22 629 257 129 456 38 44 79 79

    Bearing codes:
    BB = Bronze Bushing
    RB = Roller Bearing
