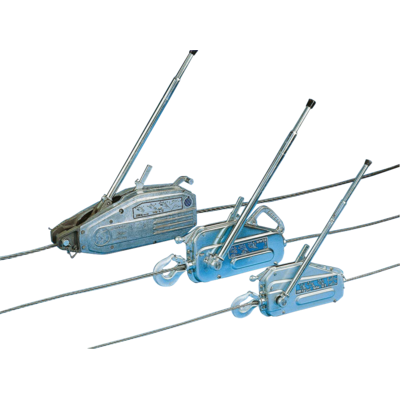

Pulling and Lifting Hoist, TIRFOR® TU

Tractel

General: Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths.
- Low weight - quick installation
- No limitation in terms of cable length
- Manageable, light-weight, robust, powerful
- Increase load capacity with deflection sheaves
- Overload protection
- Precise load placement within millimetres

  • Marking: Serial number and CE-marking.
  • Safety factor: 5:1.
Pulling and Lifting Hoist, TIRFOR® TU
Chart
Chart
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton		 Wire rope weight 20m (kg) Dim. of the machine (mm) Handle open/closed (mm) Special TIRFOR wire rope Ø (mm) Weight machine (kg) Wire rope breaking stain kg CAD
05-1061108 TU-8 0.8 6,1 527 x 265 x 108 770 - 510 8,3 8,4 4
05-1061116 TU-16 1.6 13,1 660 x 330 x 140 1190 - 680 11,5 18 8
05-1061132 TU-32 3.2 26,6 676 x 330 x 156 1190 - 680 16,3 27 16
Approved only with original Tirfor® wire rope.
