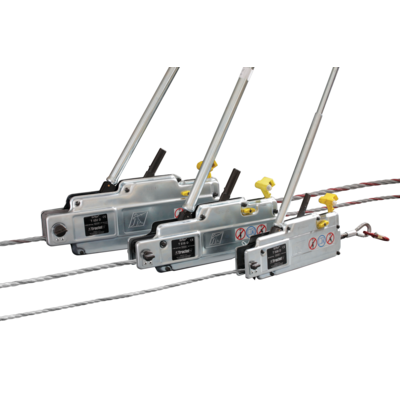

General: Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths.

  • Low weight - quick installation
  • No limitation in terms of cable length
  • Manageable, light-weight, robust, powerful

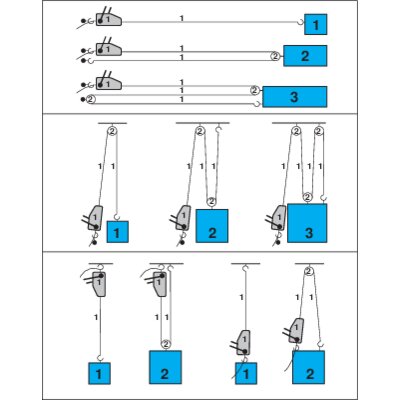

  • Increase load capacity with deflection sheaves
  • Overload protection
  • Precise load placement within millimetres
  • Marking: Serial number and CE-marking.
  • Safety factor: Tackle 5:1.
Chart
Select a row from the table below, then click the add to quote button
Art No Code WLL
Ton
Wire rope weight 20m (kg) Dim. of the machine (mm) Handle open/closed (mm) Special TIRFOR wire rope Ø (mm) Wire rope breaking strain kg Weight machine (kg) CAD
16.2518109 T-508D 0.8 6,1 420 x 250 x 59 690 - 400 8,3 4 6,6
16.2518119 T-516D 1.6 13,1 530 x 315 x 127 1150 - 650 11,5 8 13,5
16.2518129 T-532D 3.2 26,6 620 x 355 x 130 1150 - 650 16,3 16 24,0
Approved only with original Tirfor® wire rope.

Download CAD

Description

Get CAD
Download

Safety pin

Art.no
Model
16.9714370101
T-508D
16.9714370201
T-516D
16.9714370301
T-532D



Wire

Art. No
Lenght
Dim.

m
mm
16.9714376500
20
8,3
16.9714377500
20
11,5
16.9714378500
20
16,3
