General: A range of electric self-braking wormgear winches developed for heavy dutypulling and traversing duties up to 2,800 kg. Due to the self-braking wormgears the winches are suitable for pulling up a slope. A brake is available as an option for accurate positioning or repetitive lifting applications up to 2.000 kg.

- IP 54 400 VAC/ 3 phases / 50 Hz non-braked motor.
- Steel drum (not grooved) with cable fixing point at flange
- Single drum support (MCW 250, MCW 500)
- Two drum supports (all other models)
- Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
- FEM/ISO Class: T2-L2-M2
Options:
-
Braked motor (aluminium or cast iron)
- IP 56 TENV cast iron motor for marine applications
- 220 single-phase motors (up to MCW 750)
- 24 VDC motors
- Explosion proof motors
- Protective steel motor cover
- Manual or remotely controlled disengaging clutch
- Band brakes
- Grooved drum - Drum press roller
- Alternative Speeds
- Alternative drum dimensions / split drums/ additional rope anchors / etc.
- Drum Guards
- Emergency Cranking
- Marine / offshore coating systems
Control options:
- IP 65 direct pendant remote control with emergency stop (up to 1.5kW 220 V AC / 1 phase or 2.2kW 400 V AC / 3 phase)
- IP 55 control box with low-voltage IP 65 remote control built acc. to NEN 1010
- Load limiter
- Frequency inverter for variable speed control
- wireless radio control systems
- Limit switches
- Slack wire switches

  • Features: Self breaking wormgear transmission

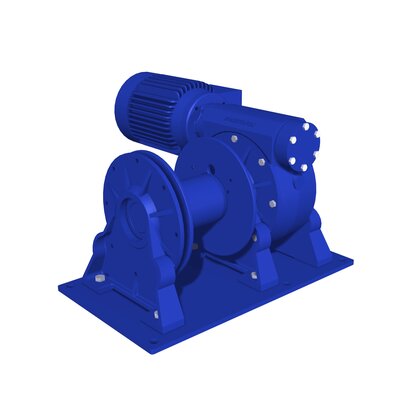

p11_MCW1200E_Standard
Select a row from the table below, then click the add to quote button
Code WLL Pulling 1st layer kg WLL Pulling 5th layer kg WLL Lifting 1st layer kg WLL Lifting 5th layer kg Recomm. Rope dia. (mm) Speed 1st layer m/min. Drumcap. 1st layer (m) Drumcap. 5th layer (m) Motor power 400v kW S2 CAD
MCW 250 250 170 200 135 6 6 2 19 0.75
MCW 500 500 340 400 275 6 6 2 19 1.1
MCW 750 750 490 600 390 7 6 6 42 1.5
MCW 1200 1,200 750 960 600 8 5 5 38 2.2
MCW 1700 1,700 1,055 1,300 805 10 6 6 50 4
MCW 2200 2,200 1,365 1,700 1,055 12 7 7 63 5.5
MCW 2800 2,800 1,745 2,000 1,245 13 8 8 76 7.5
MCW 250 SPH 250 170 200 135 6 5 2 19 0.75
MCW 500 SPH 500 340 275 275 6 5 2 19 1.5
MCW 750 SPH 700 460 360 360 7 5 6 42 1.8

Download CAD

Description

Get CAD
Download

Technical information

Winch type
Motor power
Motor power

400v
230 V1 phase

kW S2
kW S2
MCW 250
0.75

MCW 500
1.1

MCW 750
1.5

MCW 1200
2.2

MCW 1700
4

MCW 2200
5.5

MCW 2800
7.5

MCW 250 SPH   0.75
MCW 500 SPH   1.5
MCW 750 SPH   1.8
