Ropetex
  • Ordinary right hand lay
  • Galvanized
  • Not to be used with swivel

ROPETEX S16 (and S65) steel wire ropes are the most commonly used type of steel wire ropes in the range from 8 to 38 mm. Both can be used for a variety of applications. Available as S16 with Fiber Core (FC) or as S65 with Independent Wire Rope Core (IWRC). S16 is more flexible but has a lower breaking strength. S65 is less flexible but has a higher strength and is more resistant to wear and abrasion, especially when used on sheaves or drums.

Typical applications:

  • Wire rope sling
  • Hoisting installations
  • Lifting rope
  • Mooring cable
  • Towing rope
  • Lifting applications

Alternatives:

  • ROPETEX S65 is a very comparable rope with an Independent Steel Wire Rope Core (IWRC) instead of a Fiber Core (FC);

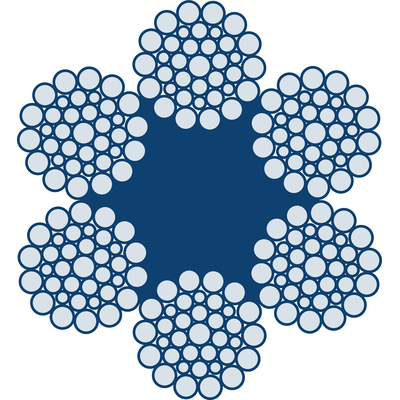

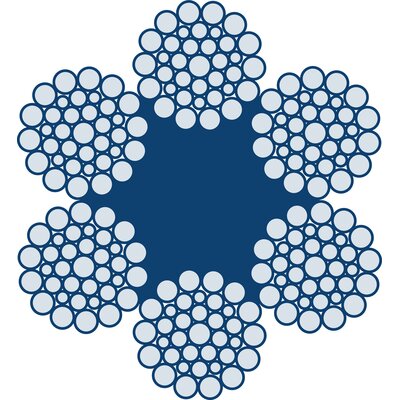

  • Rope construction: 6x36 WS + FC
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
  • Fill factor: 0,5
  • Overhead cranes For the use with overhead crane
  • Slings Information icon
  • General use Information icon
6x36-FC [New]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1960 N/mm²
Lubrication Weight
kg/100m
101100804270011 8 25 41.4 A-1 23.5
101100904270011 9 32 52.4 A-1 29.7
101101004270011 10 39 64.7 A-1 36.7
101101104270011 11 47 78.3 A-1 44.4
101101204270011 12 56 93.1 A-1 52.8
101101304270011 13 66 109 A-1 62
101101404270011 14 77 127 A-1 71.9
101101504270011 15 88 146 A-1 82.5
101101604270011 16 100.6 166 A-1 94
101101704270011 17 113.6 187 A-1 106
101101804270011 18 127.3 210 A-1 119
101101904270011 19 141.9 233 A-1 132
101102004270011 20 157.2 259 A-1 147
101102204270011 22 190.2 313 A-1 178
101102404270011 24 226.4 373 A-1 211
101102604270011 26 265.7 437 A-1 248
101102804270011 28 308.1 507 A-1 288
101103004270011 30 353.7 582 A-1 330
101103204270011 32 402.4 662 A-1 376
101103404270011 34 454.3 748 A-1 424
101103604270011 36 509.3 838 A-1 476
101103804270011 38 567.492 934 A-1 530
