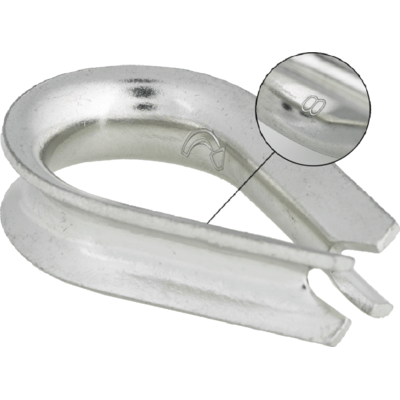

Design: Pressed of profile steel. The first choice for harsh environment of the marine sector


  • Material: Stainless steel AISI 316.
  • Finish: Polished.
4900_225mm
1902-rm_e_225mm
Select a row from the table below, then click the add to quote button
Art No Diameter
mm

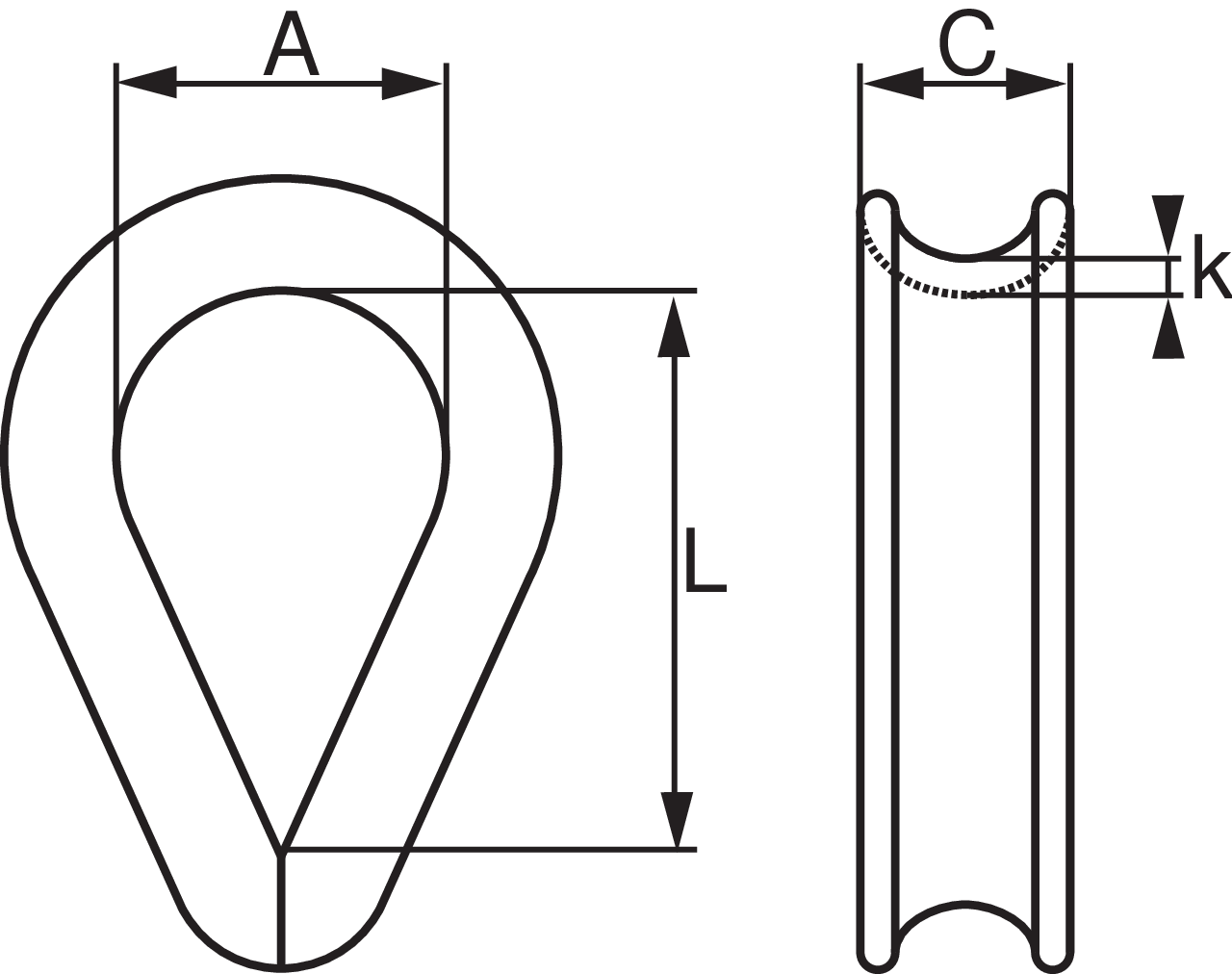

A (mm) C (mm) L (mm) k (mm) Weight
kg/100pcs
CAD
04D0550 2 9 5 17 1 0.2
04D0560 3 10 6 18 1 0.3
04D0570 4 11 7,4 20 1 0.5
04D0580 5 13 8,4 21 1 0.7
04D0590 6 15 10 27 2 1.2
1907-S 7 19 11 33 2 1.5
04D0600 8 22 13 38 2 2.7
04D0610 10 27 16 48 3 5
04D0620 12 29 19 53 3 6
1914-S 14 32 22 57 3 11
1916-S 16 40 24 67 3 12
1918-S 18 45 28 75 4 22
1920-S 20 52 30 80 4 32
1922-S 22 56 34 90 5 47
1926-S 26 70 40 112 6 80
1928-S 28 75 42 120 6 110
1932-S 32 95 46 152 6 156
1934-S 34 100 48 160 6 176
1936-S 36 110 50 176 6 192
1938-S 38 115 56 184 8 292
1940-S 40 120 58 192 8 320
1942-S 42 150 61 240 8 364
