Crosby

General:
The use of the G-414 extra heavy thimbles for your wirerope slings ensures a greater protection against wear of the wire rope and deformation of the wire rope eye.

Features:

  • Longer service life.
  • Material: Steel
  • Marking: According to standard
  • Finish: Hot-dip galvanised
  • Standard: EN 13411-1
    Crosby G-414 Extra Heavy Wire Rope Thimbles

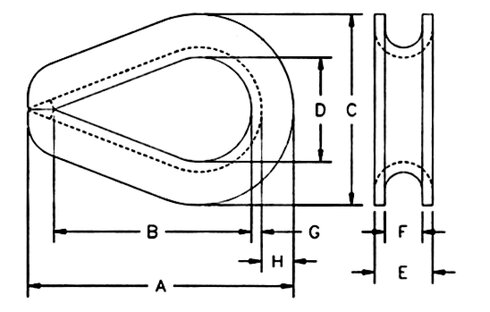

    Crosby G-414 Extra Heavy Wire Rope Thimbles measurements
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Finish A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    H
    mm
    Weight
    kg/100pc
    CAD
    -- 6-7 Galvanized 55,5 41,4 38,1 22,4 11,2 7,1 1,5 5,85 3
    -- 8 Galvanized 63,5 47,8 46 26,9 14,0 8,65 2,05 7,1 5,35
    -- 9-10 Galvanized 73,0 54,0 54 28,7 16,8 10,4 2,8 8,65 9,8
    -- 11-12 Galvanized 82,5 60,5 60,5 31,8 18,8 11,9 3,3 9,65 15,7
    04D0410 13-15 Galvanized 92,0 70,0 70,0 38,1 23,4 13,5 3,55 10,4 23,1
    04D0420 16 Galvanized 108 82,5 79,5 44,5 26,2 16,8 4,05 12,7 34,3
    04D0430 18-20 Galvanized 127 95,5 96,5 51 33,0 19,8 5,6 16,8 72
    04D0440 22 Galvanized 140 108 108 57 37,3 23,9 5,6 19,1 81
    04D0442 24-26 Galvanized 156 114 125 63,5 44,5 26,9 6,35 22,4 142
    04D0443 28-32 Galvanized 178 130 149 73 47,8 33,3 6,35 28,7 181
    04D0444 32-35 Galvanized 230 165 173 89 57,2 36,6 9,65 28,7 402
    04D0445 35-38 Galvanized 229 159 181 89 66,5 39,6 12,7 28,7 587
    -- 40 Galvanized 286 203 207 102 76,2 43,7 12,7 35,1 771
    04D0447 44 Galvanized 310 229 216 114 77,7 46,7 12,7 33,3 805
    04D0449 48-52 Galvanized 384 305 264 152 85,9 53,0 12,7 38,1 1 259
    -- 56 Galvanized 435 356 302 178 98,6 60,5 16,0 41,4 1 792
