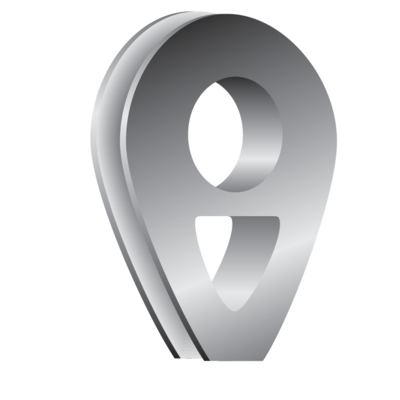

General: Protection of rope loops with holes for bolts.

Design: Casted type DIN 3091.

  • Finish: Cast.
3408_e_225mm_2
3408m_e_225mm
Select a row from the table below, then click the add to quote button

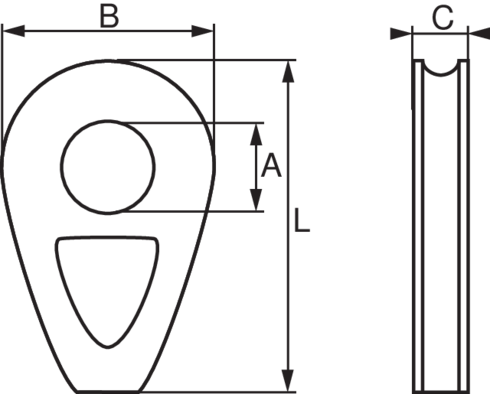

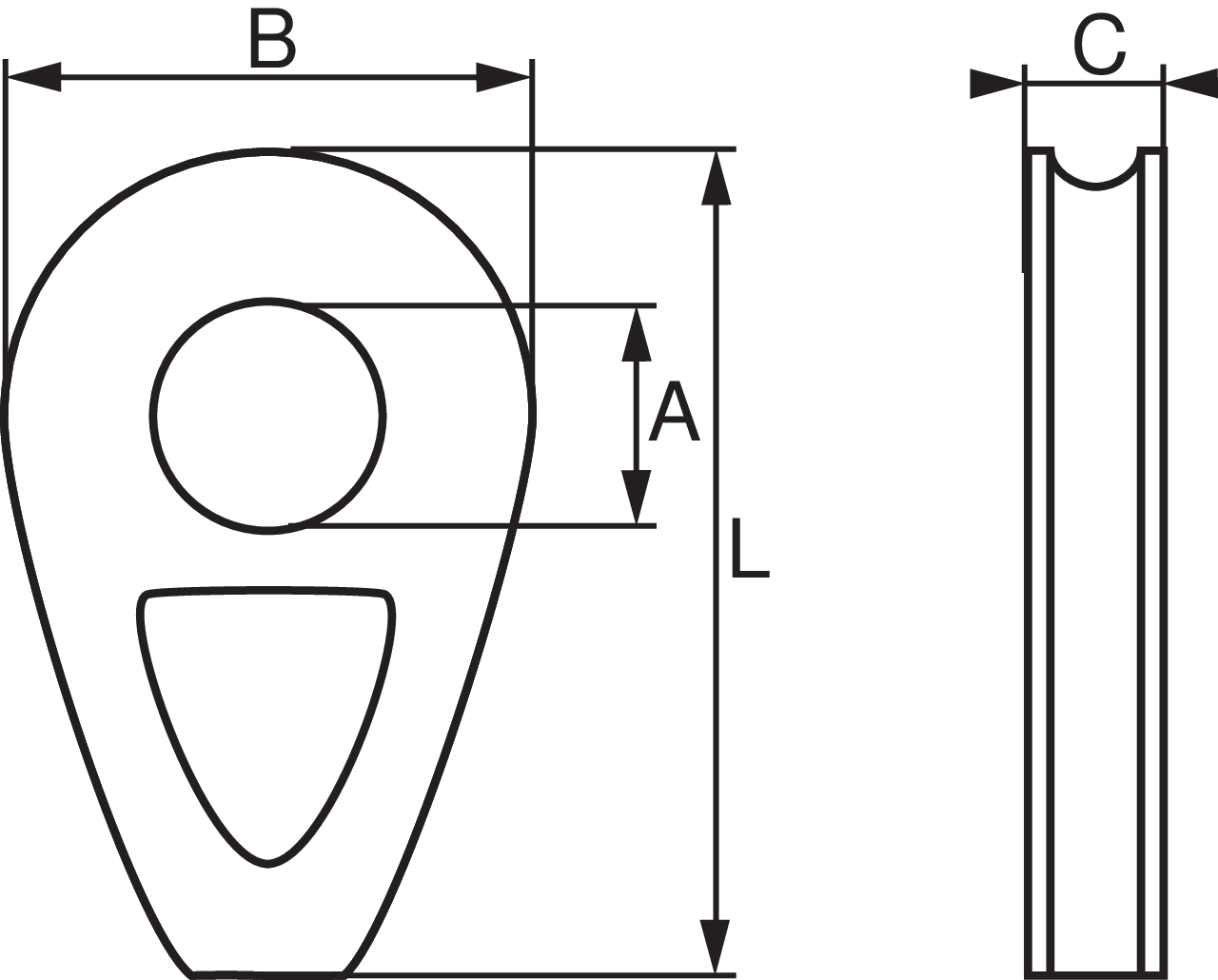

Art No Code A Not worked A Min worked A Max worked B (mm) C (mm) L (mm) Wire Ø (mm) Weight
kg/100pcs
CAD
10.27309109 3408 14 17 20 40 15 66 8 18
10.27309111 3410 18 21 25 50 17,5 82 10 32
10.27309113 3412 21 24 30 60 20 98 12 52
10.27309116 3414 25 29 35 70 23,5 114 14 80
10.27309118 3416 28 32 40 80 26 130 16 90
10.27309120 3418 31 35 45 90 28,5 145 18 121
04D0350 3420 35 40 50 100 31 161 20 161
04D0360 3422 38 43 55 110 33,5 177 22 211
04D0370 3424 41 46 60 120 36 193 24 271
04D0380 3426 44 49 65 130 39,5 209 26 355
04D0390 3428 47 52 70 140 42 224 28 420
04D0400 3432 53 58 80 160 47 256 32 630
04D0405 3436 59 65 90 180 53 288 36 884
10.27309144 3440 65 71 100 200 58 320 40 1,100
10.27309148 3444 70 76 110 220 63 352 44 1,500
10.27309153 3448 76 82 120 240 69 384 48 2,000
