Manufactured in the UK



Standard: BS 464-1 :1958

  • Features: Thimbles to give protection to the eye of the wire rope
  • Material: Steel
  • Marking: Manufacturer's symbol
  • Finish: Galvanised
Kaus2_e_225mm

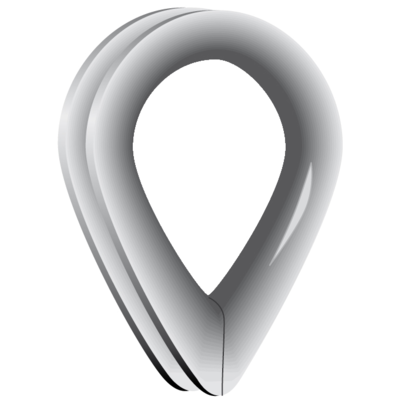

Ordinary Thimble
Select a row from the table below, then click the add to quote button

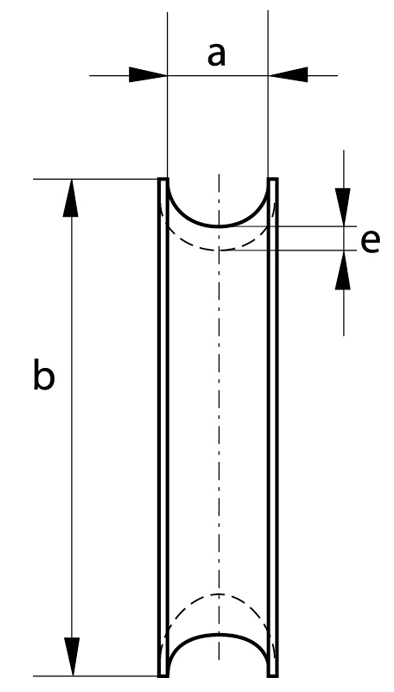

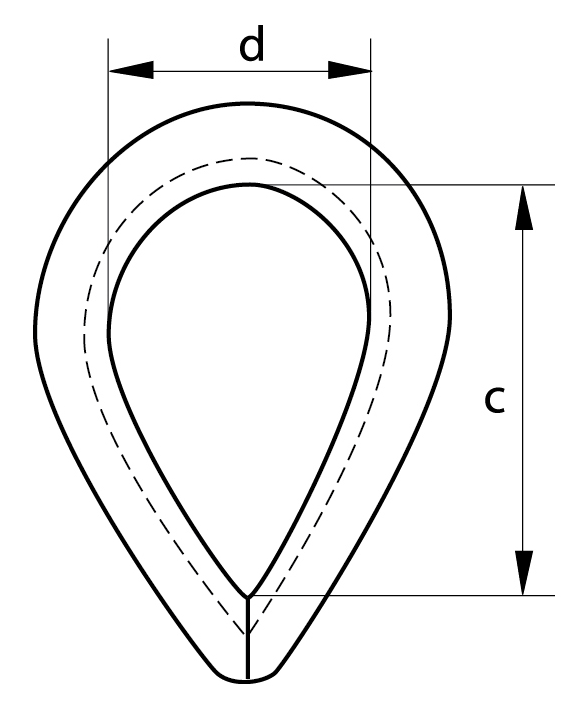

Art No Diameter (mm) A (mm) B (mm) C (mm) D (mm) E (mm) F min. G (mm) J (approx) K min. Q (mm)
04D0080 8 22.2 38.1 12.7 33.3 54 7.9 4 63.5 4 30.2
04D0090 9 25.4 47.6 14.3 38.1 63.5 10.3 6.4 76.2 4.8 34.9
04D0100 11 28.6 54 17.5 41.3 73 12.7 7.9 76.2 4.8 38.1
04D0110 13 31.8 58.7 20.6 44.4 79.4 14.3 7.9 88.9 5.6 42.9
04D0120 16 41.3 74.6 22.2 58.7 98.4 15.9 8.7 114 7.9 57.2
04D0130 17 44.4 79.4 28.6 66.7 108 19 9.5 127 7.9 60.3
04D0140 19 50.8 92.1 28.6 73 124 20.6 11.1 152 9.5 69.8
04D0150 22 57.2 102 31.8 82.6 133 22.2 12.7 165 9.5 76.2
04D0160 24 63.5 110 33.3 92.1 146 25.4 12.7 178 10.3 84.1
04D0170 25 69.8 119 34.9 108 162 27 14.3 203 10.3 90.5
04D0180 29 76.2 133 38.1 111 178 28.6 15.9 229 12.7 102
04D0190 32 95.2 152 41.3 133 197 33.3 15.9 254 12.7 121
04D0200 35 105 175 47.6 152 229 38.1 19 305 15.9 137
04D0210 38 114 197 54 165 254 41.3 23.8 330 17.5 149
