Standard: Certex Standard

  • Features: Swaged Male Adjuster to suit small cords
  • Material: Steel
  • Marking: Manufacturer's symbol
  • Finish: Zinc Plated
  • Safety factor: 5:1
MALEADJUSTER
Select a row from the table below, then click the add to quote button
Art No Diameter
mm

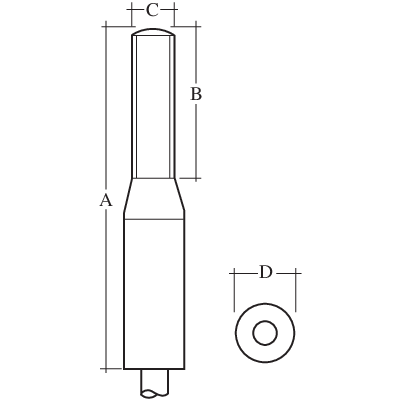

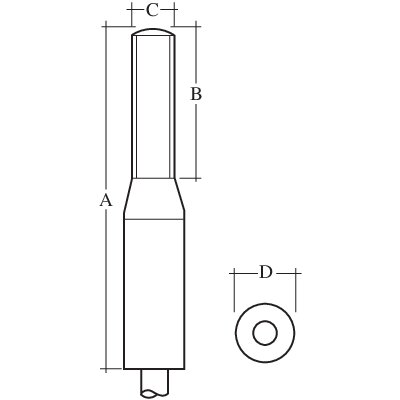

Terminal No. Dia C UNF Dia D (mm) A (mm) B (mm) CAD
04B0510 3 SMA 3 1/4" 7.9 66.6 38.1
04B0520 4 SMA 4 5/16" 7.9 85.7 50.8
04B0530 5 SMA 5 3/8" 11.1 104.7 63.5
04B0540 6 SMA 6 1/2" 12.7 139.7 88.9
04B0550 8 SMA 8 5/8" 15.9 177.8 114.3
04B0560 9 SMA 9 5/8" 19.1 215.9 139.7
04B0570 10 SMA 10 5/8" 19.1 215.9 139.7
04B0580 11 SMA 11 3/4" 22.2 266.7 177.8
04B0600 13 SMA 13 7/8" 25.4 314.3 215.9
In some cases 'C' dia will be greater than or the same as 'D' dia.
