Standard: Certex Standard

  • Features: Swaged Fork End to suit small cords
  • Material: Steel
  • Marking: Manufacturer's symbol
  • Finish: Zinc Plated
  • Safety factor: 5:1
Fork End
Select a row from the table below, then click the add to quote button
Art No Diameter
mm

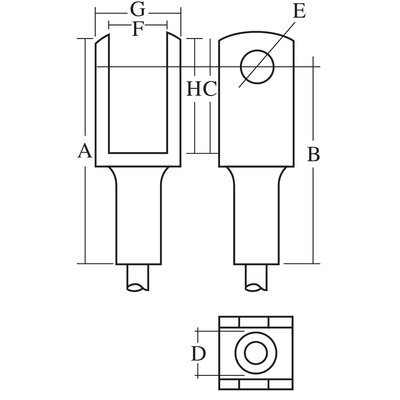

Terminal No. E Pin dia (mm) A (mm) B (mm) C (mm) D (approx) F (mm) G (mm) H (mm) CAD
3 SFE 3 6.4 48 41 13 7.2 6 13 19
04B0310 4 SFE 4 6.4 60 52 16 7.2 7 13 24
04B0320 5 SFE 5 7.9 71 62 19 9.7 8 16 28
04B0330 6 SFE 6 9.5 89 78 22 11.1 9 19 34
04B0335 8 SFE 8 12.7 111 98 25 13.7 15 25 38
9 SFE 9 15.9 130 114 32 17.2 20 32 48
11 SFE 11 Re-designed. Details on application
13 SFE 13
