Standard: Certex Standard

  • Features: Swaged Eye End to suit small cords
  • Material: Steel
  • Marking: Manufacturer's symbol
  • Finish: Zinc Plated
  • Safety factor: 5:1
Eye End
Select a row from the table below, then click the add to quote button

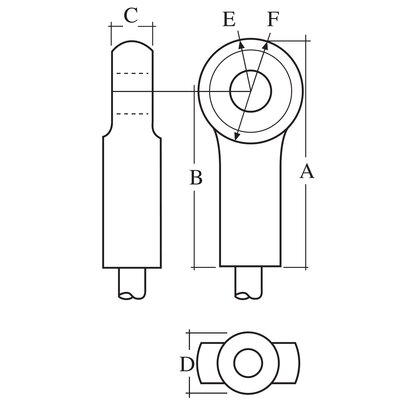

Art No Diameter (mm) A (approx) B (approx) C (mm) D (approx) F (mm) Terminal No. E Pin dia (mm)
04B0350 3 38 32 5.6 7.2 12.7 SEE 3 6.4
04B0360 4 44 37 6.4 7.2 12.7 SEE 4 6.4
04B0370 5 54 46 7.2 9.7 15.9 SEE 5 7.9
04B0380 6 68 59 7.9 11.1 19.1 SEE 6 9.5
04B0390 8 90 78 14.3 15.9 25.4 SEE 8 12.7
04B0400 9 103 87 19.1 17.2 28.6 SEE 9 15.9
04B0410 11 125 110 19.1 19.1 31.8 SEE 11 15.9
04B0420 13 143 124 22.2 22.2 38.1 SEE 13 19.1
In some cases 'C' dia will be greater than or the same as 'D' dia.
