1) Wire rope Diameter in acc. to DIN EN 12385 ( former DIN 3051 – 3071).
2) For socketing only use the following materials: DF-VM Art. Nr. 01-7016010, TEGO VG3 Art. Nr. 01-7016028,
or Wirelock. Please obtain the socketing guidelines 20612044 (720 IS 817) and DIN EN 13411-4. Socketing Materials´have the aproval from the Germanischen Lloyd. Weight for socketing material are listed for 1 socket.
4)Delivery time on request.

Don't use ropes with bigger diameter as listed in the chart even NOT when the dimension "d" in the chart allows the use of bigger rope diameters.
  • Material: Permanent rope connectors make it possible to change load handling attachments quickly by simply detaching and connecting the grab ropes to the closing ropes on the hoist unit.
  • Marking: Producer,  Size, Batch No.

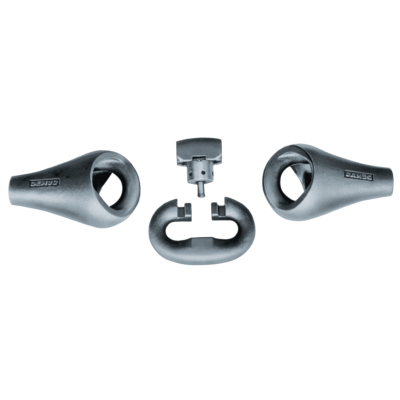

Demag rope socket
Demag rope socket drawing
Select a row from the table below, then click the add to quote button
Art No G (mm) Nom. size Rope <SUP>1)</SUP> (Ø) s Allowable_dim. Potting kg <SUP>2)</SUP> Beak roll diameter m (mm) min Stock Code A (mm) D (mm) e (mm) f (mm) r (mm) Weight
kg
CAD
9170011 11,75 1 10 1.5 0,145 315 69 12 48 12 195 0.3
9170002 13,75 2 11+12 1.5 0,235 400 78,5 14 56 15,5 195 0.42
9170003 15,75 3 13+14 1.5 0,328 450 90,5 16 64 17,5 220 0.67
9170004 17,75 4 15+16 1.5 0,390 500 102,5 18 70 19,5 220 0.95
9170005 19,5 5 18 1.5 0,723 560 114 20 84 21 245 1.3
9170006 21,5 6 19+20 2 0,78 630 129 22 84 23 310 1.6
9170007 23,5 7 22+24 2 1,36 710 140 26 100 26 310 2.4
9170008 25,5 8 26 2 1,4 800 04A0460 158 29 100 28 350 2.6
9170009 27,5 9 28 2 2,3 900 171 31 120 31 350 3.6
9171000 29 10 32 2 2,65 1,000 04A0470 190 35 120 32 445 4.4
9171001 31 11 35 2 4,3 1,120 203 37 142 36 445 6
9171002 35 12 36 2.5 4,1 1,120 225 40 142 39 495 7.5
9171003 37 13 40 2.5 6,5 1,250 04A0480 242 43 166 43 555 9
9171004 41 14 44 2.5 7,0 1,400 265 47 166 47 595 11.5
9171005 43 15 48 2.5 6,7 1,600 04A0500 286 51 166 49 595 12.5
9171006 60 17 64 2.5 10,0 2,100 400 75 250 75 950 30
