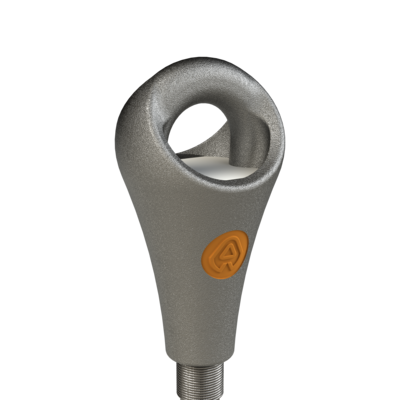

The Nemag Rope Pear Socket is designed to, in combination with the Nemag Quick Release Link, smoothly pass over cabel sheaves. The life span of the Nemag Rope Pear Socket generally surpasses that of the steel wire rope. The Rope Pear socket can be fitted by casting with a 2-component casting mass without the need for outside assistance, and ensures a strong connection. Nemag Rope Pear Sockets are suited to any type of steel wire rope.

  • Material: High grade casted steel.
  • Marking: Manufacturers logo, size and batch number.
  • Warning: The specified capacities shown are for grab operation. For other applications use safety factor 5:1
  • Safety factor: 5:1
Dp-1_e_225mm

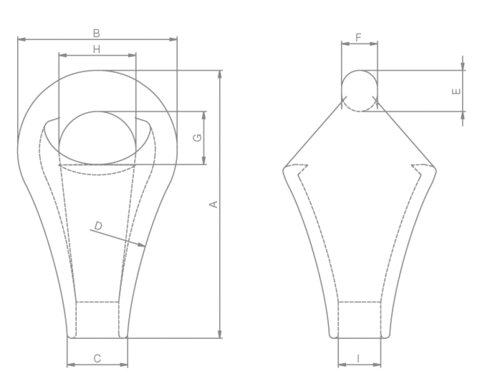

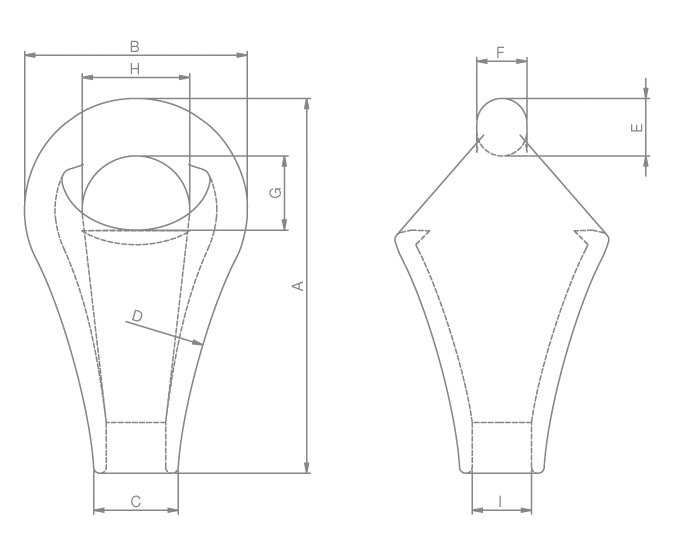

Nemag_rope_pear_drawing_3
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
MBL
t
Rope diameter
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
Weight
kg
-- RP-2 2 14 12-13 95 56 25 195 15,5 13,5 22 25 16 0.4
-- RP-3 2.5 17.5 14-15 109 64 28 220 17,5 15,5 24 29 19 0.6
-- RP-4 3 22.5 16-17 123 70 31 220 19,5 17,5 26 31 21 0.9
-- RP-5 4.5 27.5 18-19 135 84 33 245 21 19 30 42 23 1.3
-- RP-6 5 35 20-21 152 84 36 310 23 21 33 38 26 1.5
-- RP-7 7 42.5 22-24 166 100 40 310 26 23 37 48 30 2.2
-- RP-8 8 52.5 25-27 186 100 43 350 28 25 39 44 32 2.4
-- RP-9 11 70 28-30 202 120 45 350 31 27 40 58 35 3.7
-- RP-10 13 85 31-33 222 120 52 445 32 28,5 45 56 39 4.1
-- RP-11 15 95 34-36 239 142 55 445 36 31,5 50 70 42 5.9
-- RP-12 17 110 37-39 264 142 60 495 39 34,5 51 64 45 6.7
-- RP-13 21 125 40-42 285 166 63 555 43 36,5 59 80 48 9.3
-- RP-14 26 155 43-45 312 166 68 595 47 40 62 72 51 10.5
-- RP-15 30 180 46-48 337 170 75 595 51 44 66 68 55 12.1
-- RP-17 42.5 240 52-56 400 220 84 880 60 54 75 90 63 21.3
* Working load is max. working load for grabbing operations.
For other operations apply the min. safety factor 5.

Combination of the Nemag Rope Pear Socket with Nemag Quick Release Link

A Rope Pear Socket can be fitted to a Quick Release Link of the same size, or to a link with a different size as indicated in table

Pear code: Link code:

RP-2
RP-3 RL-4
RP-4 RL-4 / RL-5
RP-5 RL-4 / RL-5 / RL-6
RP-6 RL-5 / RL-6 / RL-7
RP-7 RL-6 / RL-7 / RL-8 / RL-9
RP-8 RL-7 / RL-8 / RL-9
RP-9 RL-8 / RL-9 / RL-10
RP-10 RL-9 / RL-10 / RL-11
RP-11 RL-10 / RL-11 / RL-12
RP-12 RL-11 / RL-12 / RL-13
RP13 RL-12 / RL-13 / RL-14
RP-14 RL-13 / RL-14 / RL-15
RP-15 RL-14 / RL-15
RP-17 RL-17
