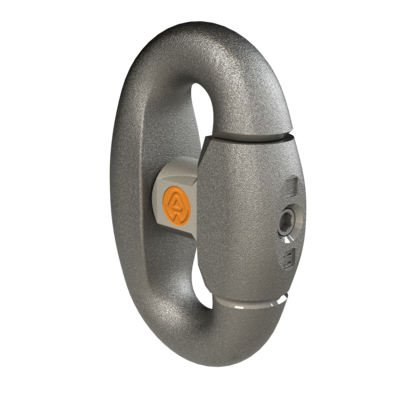

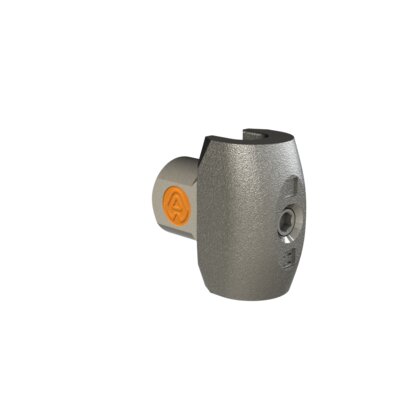

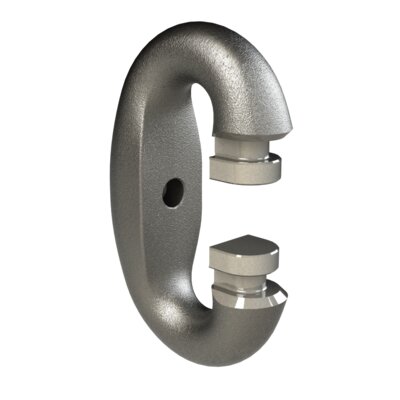

The Nemag Quick Release Link has been balanced and perfected to become the most reliable, quickest and safest coupling method for ropes and chains. The contact surface of the C-section has been hardened, which considerably lengthens the life span. The construction of the locking piece ensures reliable functioning; even under severe circumstances. The locking pieces are interchangeable.

Optional: Nemag also supplies a key especially designed for the Quick Release Link. This key has a hexagonal head that fits into the keyhole of the locking piece. The horizontal handle provides sufficient grip to be able to open or close any locking piece with one short movement. The sharp end of the handel can be used to remove dirt on the outside (of the keyhole).



  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1

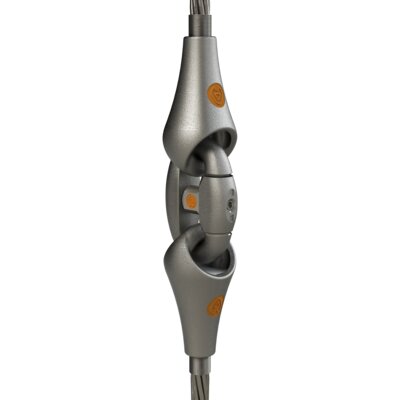

  • Warning: The working load is the recommended maximum load for grabbing operations when Quick Release Links and Rope Pear Sockets are passing over a special cable sheave. For other applications a safety factor in line with official international and national guidelines has to be adhered to.
Ds-1_e _225mm
DS-1M_e_225mm
Select a row from the table below, then click the add to quote button

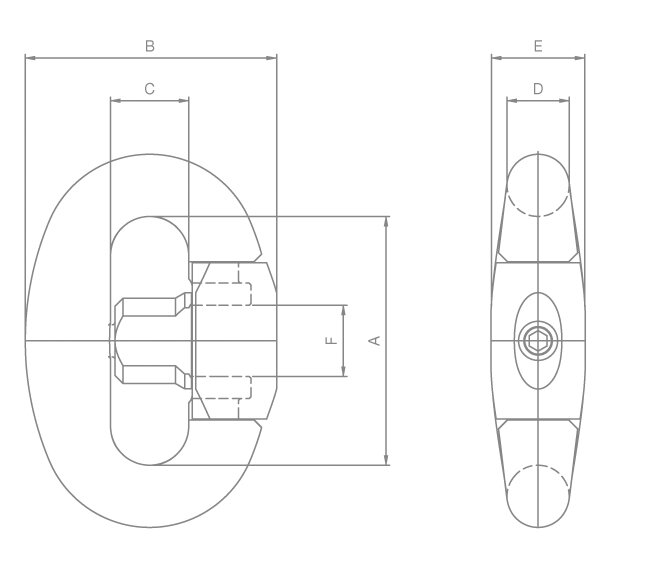

Part Code Code WLL MBL
t
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
-- RL-4 3 25 76 76 24,5 19 30 21 0.9
-- RL-5 4.5 33 84 84 27 21 32,5 23 1.2
-- RL-6 5 37.5 92 92 29,5 23 35 25 1.5
-- RL-7 7 49 100 100 32 25 38 28 2
-- RL-8 8 54 108 108 34,5 27 40,5 31 2.5
-- RL-9 9.5 60 116 116 37 29 43,5 34 3.1
-- RL-10 12 75 128 128 40,5 32 48 37 4.4
-- RL-11 15 95 140 140 44 35 53 40 5.7
-- RL-12 17 110 152 152 47,5 38 57 43 7.2
-- RL-13 21 135 164 164 51 41 61,5 46 8.7
-- RL-14 26 160 176 173 54 44 66 50 11
-- RL-15 30 175 188 188 58 47 70,5 52 13.5
-- RL-17 42.5 260 222 222 68 56 84 62 23
