Standard: BS 463 - 1958 - part 1

  • Material: Body and pin high tensile steel
  • Finish: Self colour - hot dipped galvanised available, prices on request
  • Safety factor: MBL equals 5 x SWL

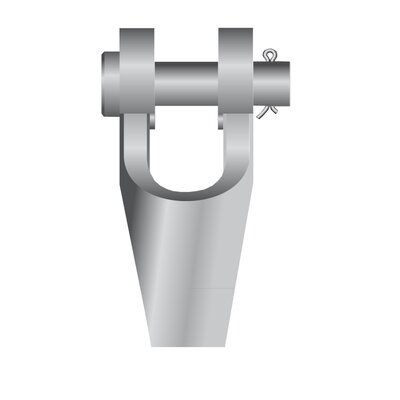

Product Image 1
Select a row from the table below, then click the add to quote button
Product code (code) Stock Code safe working load (ton) diameter wire rope inch length basket a inch width inside b inch pin diameter c inch length inside to pin centre d inch opening e inch Weight
kg
51,001 04A0290 0.5 1/4 1.11/16 5/8 1/2 1.1/4 5/16 0.34
51,002 04A0280 0.75 5/16 1.11/16 5/8 1/2 1.1/4 3/8 0.34
51,003 04A0300 1 3/8 2 7/8 5/8 1.11/16 15/32 0.57
51,004 04A0310 1.25 7/16 2 7/8 5/8 1.11/16 17/32 0.57
51,005 04A0320 2 1/2 2.3/8 1.1/8 13/16 2.1/16 19/32 0.8
51,006 04A0330 2.25 9/16 2.3/4 1.1/4 13/16 2.1/16 21/32 0.8
51,007 04A0340 3 5/8 2.3/4 1.1/4 15/16 2.1/2 23/32 1.14
51,008 04A0350 4.25 3/4 3 1.1/2 1.1/8 2.5/8 27/32 1.93
51,009 04A0360 5.5 7/8 3.3/8 1.11/16 1.1/4 3 1 2.73
51,010 04A0370 7.5 1 4.1/8 1.7/8 1.1/2 3.1/2 1.1/8 4.77
51,011 04A0380 9.5 1.1/8 4.1/2 2 1.5/8 4 1.1/4 6.82
51,012 04A0390 11.5 1.1/4 5.1/4 2.1/8 1.7/8 4.3/8 1.3/8 10
51,013 04A0400 14 1.3/8 6 2.9/16 2.1/4 4.1/2 1.9/16 15.23
51,014 04A0410 16.5 1.1/2 6 2.9/16 2.1/4 4.1/2 1.11/16 15.23
51,015 04A0345 19 1.5/8 6 2.9/16 2.1/4 4.1/2 1.11/16 15.23
51,017 25 2 7.11/16 3.1/8 2.3/4 6.1/2 2.13/16 56
31,018 38 2.1/4 9 3.3/4 3.1/2 7.1/2 2.1/2 64
