Ropeblock

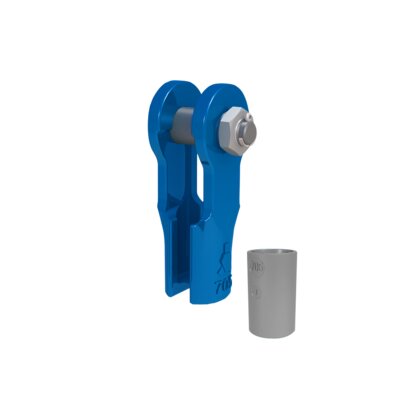

Forged clevis fittings with bolt, nut and cutterpin for fast connection of steel wire rope. Can be used to terminate all constructions of wire rope including high performance ropes, anti-rotation ropes and standard 6 strand ropes.
The connector has to be moulded / casted on the steel wire rope with wirelock resin.



  • Features: Designed for use with mobile cranes.
  • Material: Quenched and tempered cast steel.
  • Finish: Blue painted (P) or hot dip galvanized (G).
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button

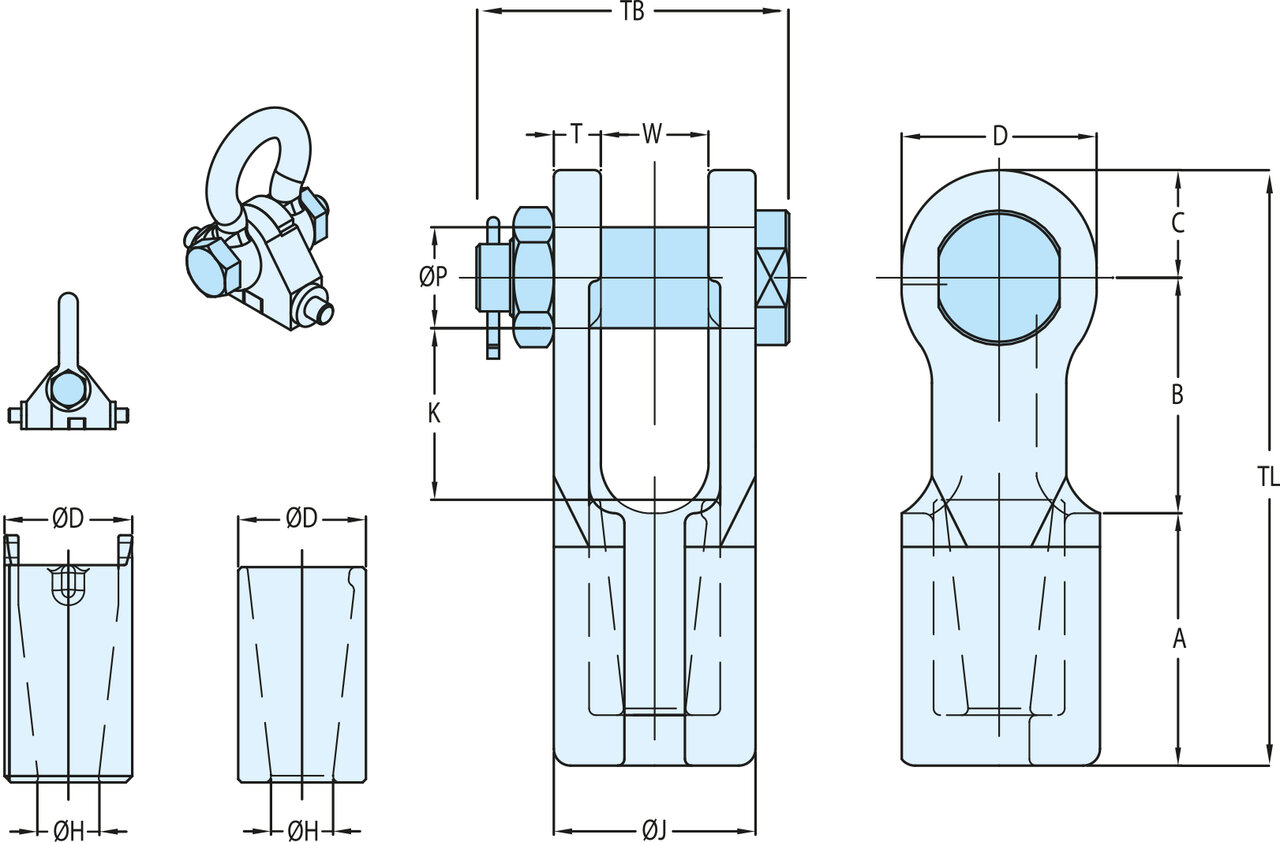

Part Code Code Rope diameter
mm
MBL
ton
Finish TB
mm
TL
mm
A
mm
B
mm
C
mm
Ø H
mm
Ø P
mm
T
mm
W
mm
D
mm
Ø D
mm
Ø J
mm
K
mm
Weight
-- FCS 701 B 11-13 20 Painted 80 150 62 61 27 15 25 12 25 50 33 49 46 1,6
-- FCS 702 B 13-16 25 Painted 96 182 72 78 32 18 30 14 32 58 38 60 59 2,6
-- FCS 703 B 16-19 40 Painted 107 218 85 93 40 21 35 16 38 70 45 70 69 4,5
-- FCS 704 B 20-22 55 Painted 123 253 102 106 45 24 41 19 44 80 50 82 81 6,5
-- FCS 705 B 23-26 75 Painted 138 298 115 123 60 28 51 22 51 104 60 95 90 11
-- FCS 706 B 27-29 90 Painted 160 357 140 152 65 32 57 25 57 114 70 107 116 16
