End Stops for crane rope applications.

Type ESP has an inspection hole and is prepared for an RFID chip and gives the possibility to check tests and certificates of the product.

Featueres:These end stops are designed for full load applications of rotation resistant and low rotation ropes. The chamfered surface around the cylinder matches different fitting devices. The bore of the end stop is slightly conical to distribute the stress over a larger area.

The exact diameter and length of the end stop assembly should be confirmed when an order is placed to ensure a good match between stop and device.
The end stop is specifically manufactured for rotation resistant and low rotational ropes with a fill factor between 0.61 and 0.76 for other rope types please contact us.

  • Material: Mild carbon steel.
  • Marking: ID code and Manufacturer's symbol.
  • Temperature range: -40°C to 150°C
  • Finish: Ungalvanised.
  • Safety factor: 5:1

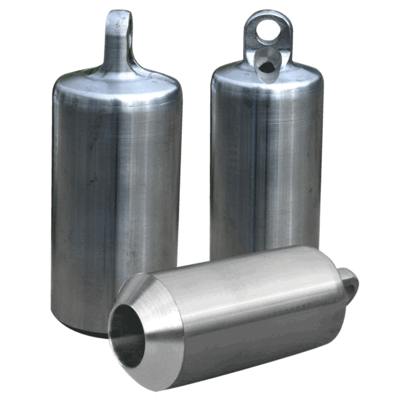

Crane stop with pad eye
Select a row from the table below, then click the add to quote button
Part Code Code Rope diameter
Finish dia.
Finish length
04B1041 ESP23D52 23 52 178
-- ESP24D52 24 52 178
04B1042 ESP25D52 25 52 178
-- ESP26D52 26 52 178
-- ESP28D58 28 58 203
-- ESP30D64 30 64 219
-- ESP32D64 32 64 219
