Talurit

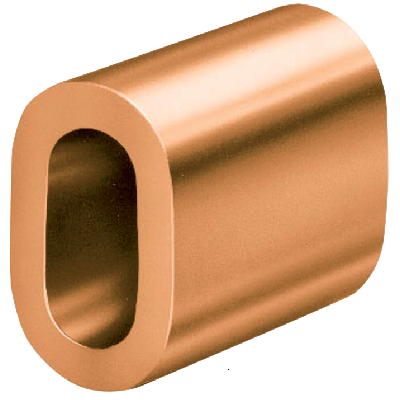

The copper ferrule (TCU) is intended for stainless steel wire rope to avoid galvanic corrosion. The pressing of TCU ferrules requires approx 25% higher pressure than the corresponding T ferrule of aluminium alloy.

Note:
We do not guarantee the strength of slings for lifting activities made of Copper turnback ferrules. A termination performed according to our instructions will normally withstand a tensile strength of 90% of minimum breaking load (MBL) of the wire rope. Verifying tests must be done in order to secure the strength of the termination.

These ferrules have been validated according to TALURIT™ splicing system, which is within the framework of EN 13411-3. The copper material is not accepted in this standard.

  • Material: Copper (almost 99,9%)
  • Marking: According to standard
  • Standard: EN 13411-3
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
    TCU
    Select a row from the table below, then click the add to quote button
    Part Code Ferrule size
    mm
    Length
    mm
    -- 1 6,5
    -- 1,5 8
    -- 2 9
    -- 2,5 12
    -- 3 14
    -- 3,5 16
    -- 4 18
    -- 4,5 20
    -- 5 23
    -- 6 27
    -- 6,5 29
    -- 7 32
    -- 8 36
    -- 9 40
    -- 10 45
    -- 11 50
    -- 12 54
    -- 13 59
    -- 14 63
    -- 16 72
    -- 18 81
    -- 20 90
    -- 22 99
    -- 24 108
    -- 26 117
    10.02TCU28 28 126
    10.02TCU30 30 135

    Diameter after pressing, see instruction.
    Length is after pressing.
