• Not for lifting

Round ferrule (R) is intended to be pressed on single round strand wire ropes, for instance on preventer wires or used as end stop.

The expected strength regarding this end-termination is approximately 50% of the MBL of the wire rope (informative only).

Round aluminium end stops are not recommended for use in high strength applications.

  • Material: Aluminum
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
  • Warning: Ends stops (R) are not allowed to use for lifting applications.

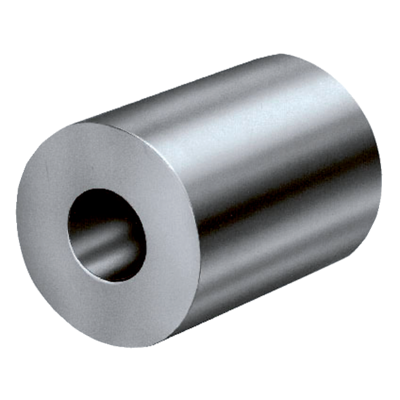

    R, copyright
    Select a row from the table below, then click the add to quote button
    Part Code Ferrule size
    10.01R015 1,5
    10.01R03 3
    10.01R04 4
    10.01R05 5
    10.01R06 6
    10.01R065 6,5
    10.01R07 7
    10.01R08 8
    10.01R09 9
    10.01R10 10
    10.01R11 11
    10.01R12 12
    10.01R13 13
    10.01R14 14
    Diameter after pressing, see instruction.

    info / downloads
