Material:
Steel



Standard: DIN 1142 and meets performance requirements of EN 13411-5:2003

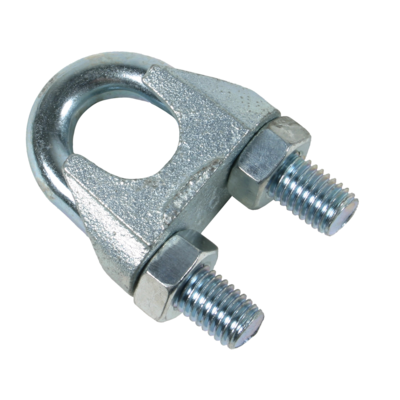

  • Features: Wire Grips to form a temporary termination on site
  • Marking: ID code and Manufacturer's symbol
  • Finish: Galvanised
  • Safety factor: 5:1
2001_225mm
DIN1142_drg
Select a row from the table below, then click the add to quote button
Diameter
mm
Stock Code a (mm) b1 (mm) b2 (mm) d (mm) h1 (mm) h2 (mm) I (mm) CAD
5 40,000,000,000 13 7 13 M5 25 13 25
6.5 400,000,000,000,000,000,000 17 8 16 M6 32 14 30
8 4,000,000,000,000,000,000,000,000,000,000 20 10 20 M8 41 18 39
10 40,000,000,000,000,000,000,000,000,000,000,000,000,000 24 12 20 M8 46 21 40
13 400,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 30 15 28 M12 64 29 55
16 4,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 35 18 32 M14 76 35 64
19 40,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 36 22 32 M14 83 40 68
22 400,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 40 24 34 M16 96 44 74
26 4,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 50 26 38 M20 111 51 84
30 40,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 55 34 41 M20 127 59 95
34 400,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 60 38 45 M22 141 67 105
40 4,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000,000 65 44 49 M24 159 77 117

Download CAD
