Home / Products / Steel Wire Rope Accessories / Clips and clamps / Wire Rope Clip Crosby G-450

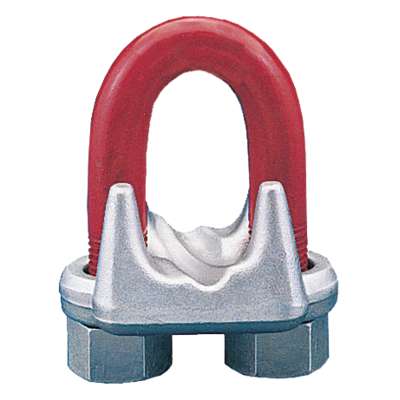

Wire Rope Clip Crosby G-450

Crosby

Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 3 mm through 22 mm sizes, and 90% for sizes 24 mm through 90 mm.

  • Features: Wire clips to secure and form a temporary termination on site.
  • Material: Steel
  • Marking: According to standard, ID code and Manufacturer's symbol
  • Finish: Galvanised
  • Standard: EN 13411-5
  • Note: All sizes except 68-72 mm and 85-90 mm meet the performance requirements of EN13411.

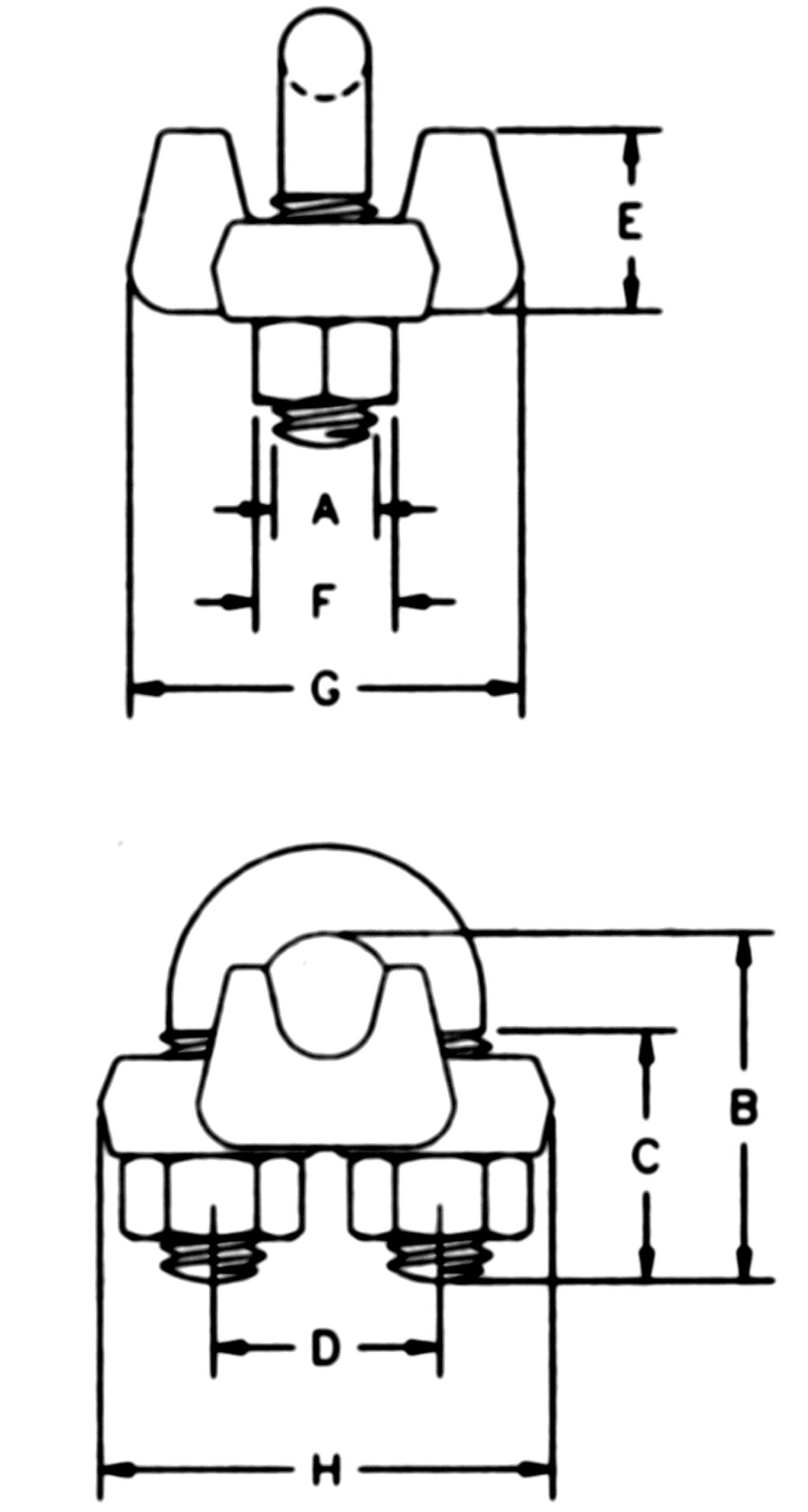

    Crosby_g450_drg
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm    		 A
    mm    		 B
    mm    		 C
    mm    		 D
    mm    		 E
    mm    		 F
    mm    		 G
    mm    		 H
    mm    		 Weight
    kg/100m    		 CAD
    -- 3-4 5,6 18,3 11,2 11,9 10,4 9,65 20,6 23,9 2,72
    -- 5 6,35 24,6 14,2 15 12,7 11,2 23,9 29,5 4,54
    -- 6-7 7,85 26,2 12,7 19,1 16,8 14,2 30,2 36,6 8,62
    -- 8 9,65 35,1 19,1 22,4 18,3 17,5 33,3 42,9 12,7
    -- 9-10 11,2 38,1 19,1 25,4 23,1 19,1 41,4 49,3 21,8
    -- 12-13 12,7 47,8 25,4 30,2 28,7 22,4 48,5 58 36,3
    -- 16 14,2 60,5 31,8 33,3 34 23,9 52,5 63,5 49,9
    -- 18-20 15,7 70 36,6 38,1 35,8 26,9 57 72 64
    -- 22 19,1 79 41,1 44,5 40,4 31,8 62 80,5 96
    -- 24-26 19,1 89 46 47,8 45,2 31,8 67 88 114
    -- 28-30 19,1 98,5 51 51 48,5 31,8 71,5 91 128
    -- 32-34 22,4 108 54 59,4 55,5 36,6 79,5 105 199
    -- 36 22,4 118 58,5 59,4 58,5 36,6 79,5 106 200
    -- 38 22,4 125 60,5 66,5 62 36,6 86,5 113 247
    04E0288 41-42 25,4 135 66,5 70 67,5 41,4 92 11 319
    04E0289 44-46 28,7 146 70 77,5 74,5 46 97 134 424
    04E0290 48-52 31,8 164 76 86 77 51 113 149 590
    -- 56-58 31,8 181 81 98,5 81 51 114 162 726
    -- 62-65 31,8 195 87,5 105 93,5 51 119 168 862
    -- 68-72 31,8 211 90,5 111 124 51 127 175 1 043
    -- 75-78 38,1 233 98,5 121 119 60,5 149 194 1 406
    -- 85-90 38,1 273 114 140 152 60,5 157 213 1 814

    * Electro-plated U-Bolt and Nuts. ** 70mm and 89mm base is made of cast steel.

    Download CAD

    Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
