• Not for lifting
  • Stainless steel

Wire rope clips for steel wire rope for general applications.
Design: Forged U-bolt and casted bases.



  • Material: Bases AISI 316, u-bolt AISI 304.
  • Marking: According to standard
  • Standard: DIN 741
  • Note: Follow the fitting instructions in the user manual before use.
  • Warning: Not approved for lifting.

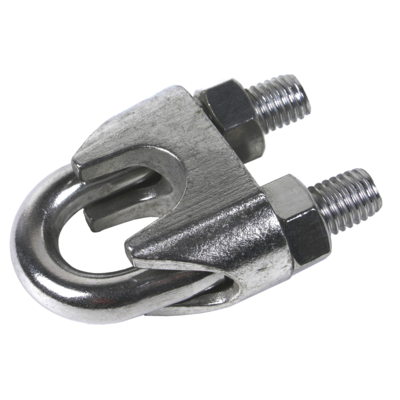

    Quality Wire rope clip AISI 316 a wire rope clip for steel wire rope for general applications

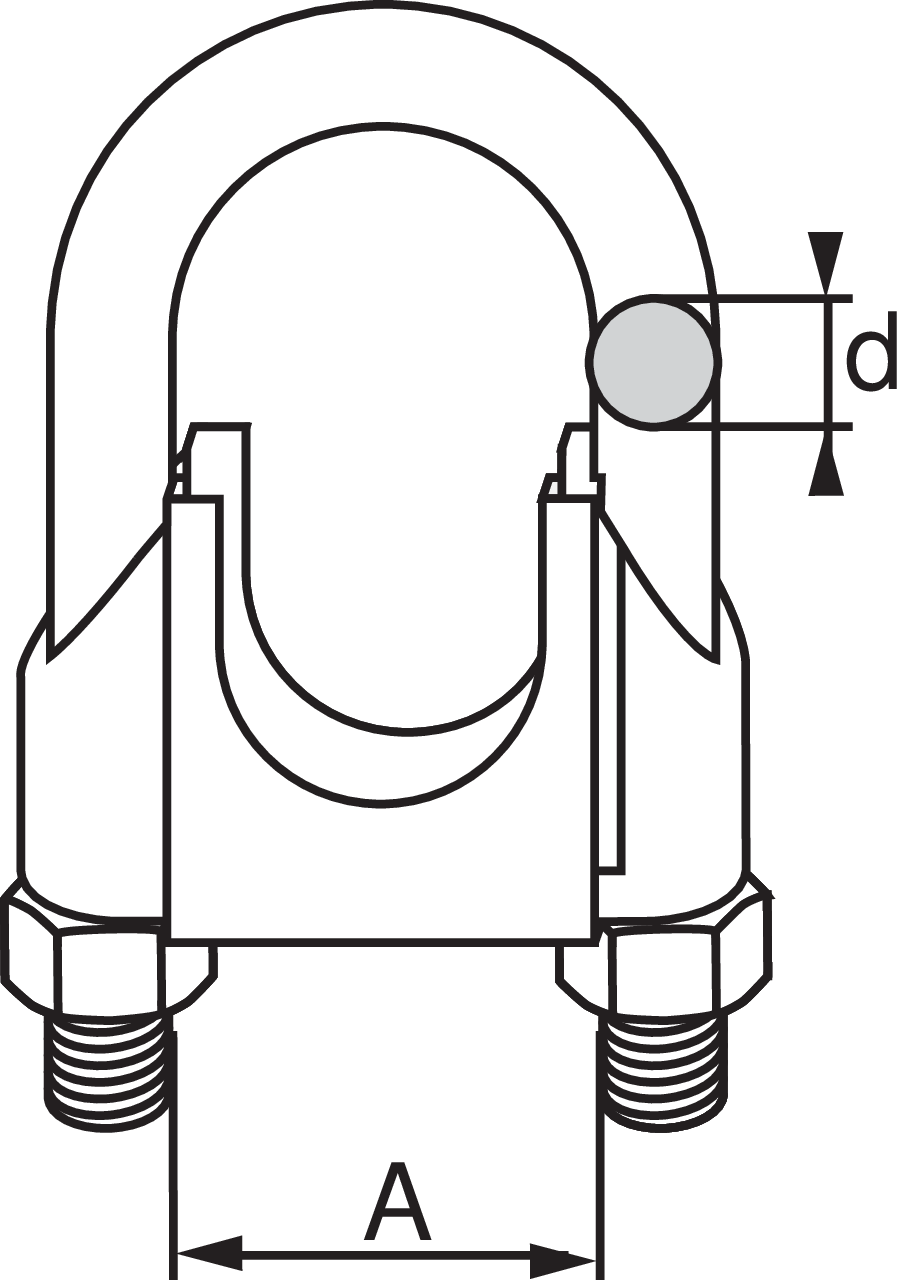

    U-Bolt Clip DIN 741 Stainless drawing
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    A
    mm
    d
    mm
    H
    mm
    Weight
    kg/100pc
    04E0130 3 9 4 20 1,2
    04E0140 5 11 5 24 1,4
    04E0150 6 13 5 28 1,7
    04E0160 8 16 6 34 4,1
    04E0170 10 20 8 42 5,9
    04E0180 12 24 10 55 13
    -- 16 30 12 63 21
