• Not for lifting

Wire rope clips for steel wire rope for general applications.
Design: Forged u-bolts and casted bases.

  • Marking: According to standard
  • Finish: Electro-Galvanised
  • Standard: DIN 741
  • Note: Follow the fitting instructions in the user manual before use.
  • Warning: Not for lifting

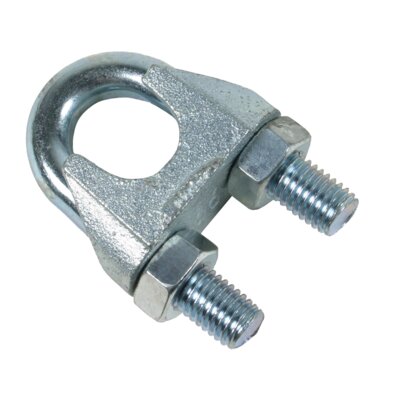

    Galvanized U-bolt wire rope grip

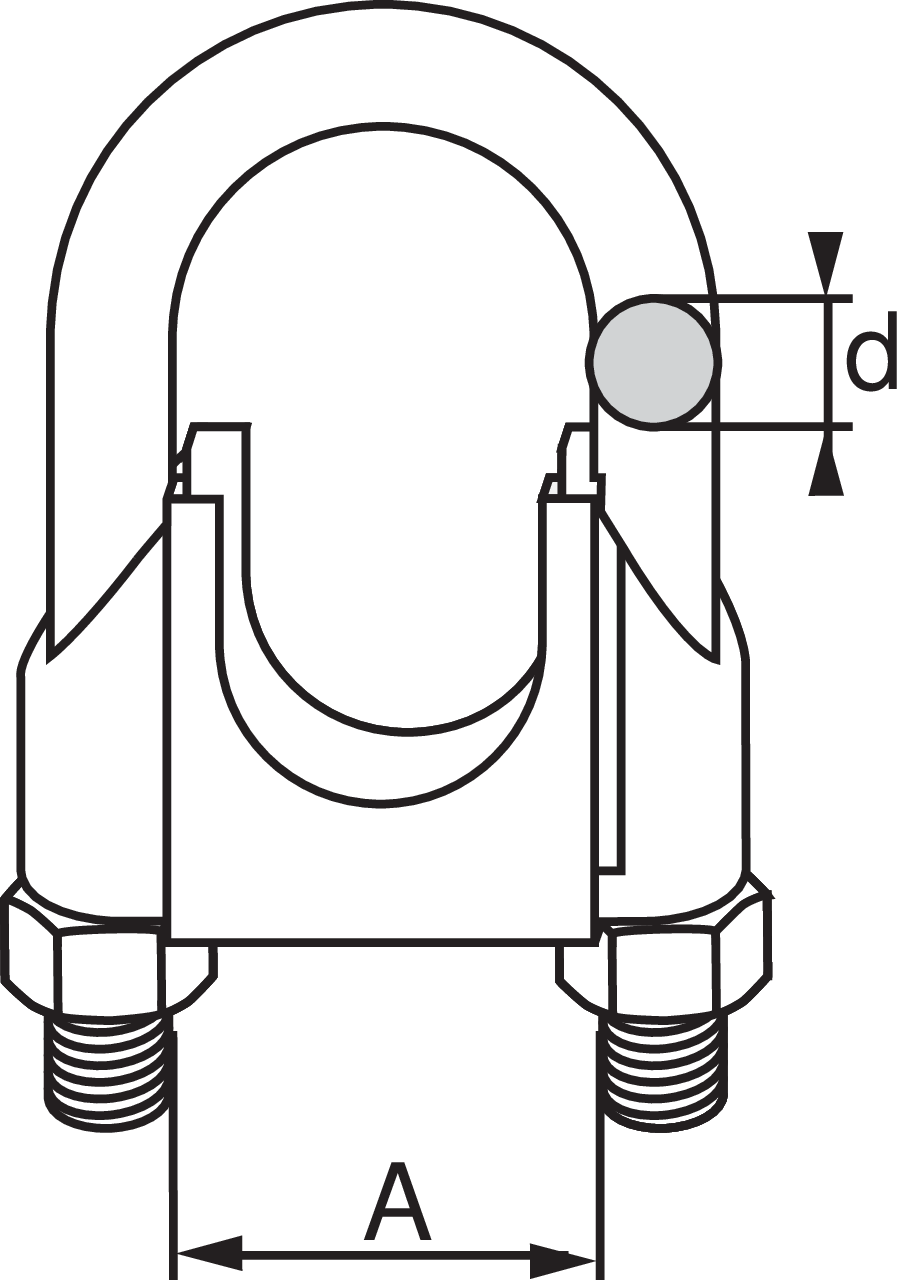

    U-Bolt Clip DIN 741 Stainless drawing
    Select a row from the table below, then click the add to quote button
    Part Code Rope diameter
    mm
    Inch
    "
    A
    mm
    d
    mm
    H
    mm
    Weight
    kg/100pc
    04E0190 3 1/8 9 4 20 1,4
    04E0200 5 3/16 11 5 24 1,5
    04E0210 6 1/4 13 5 28 2,1
    -- 8 5/16 16 6 34 4,1
    04E0220 10 3/8 19 8 42 6,8
    04E0230 13 1/2 24 10 55 13
    04E0240 16 5/8 29 12 63 21
    04E0250 19 3/4 32 12 75 28
    04E0260 22 7/8 37 14 85 40
    04E0270 26 1 41 14 95 44
    04E0280 30 1 1/8 48 16 110 66
    -- 34 1 1/4 52 16 120 85
    -- 40 1 1/2 58 16 140 104
