• Not for lifting

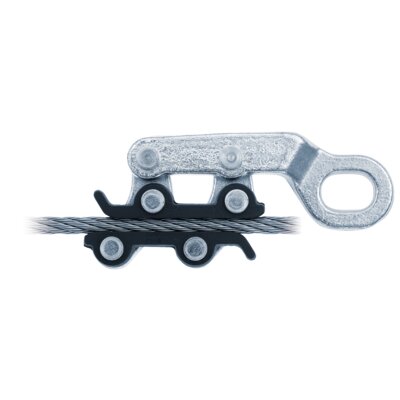

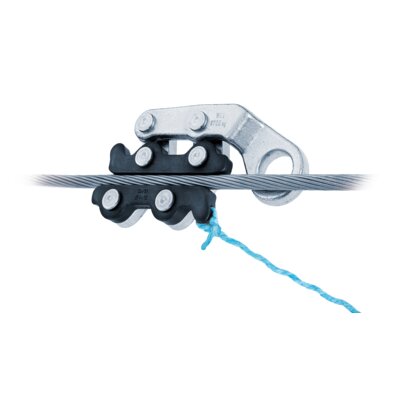

General: For installation and pulling of ropes, strand and steel or copper cables. The enclosed spring construction maintains the grip on the rope even when the rope is unloaded.
Design: Forged.

  • Warning: Not for lifting!
4101_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
MBL
t
For rope Ø (mm) Stay rope mm² Eye size
mm
Weight
kg
-- 4101 0.5 1.25 1-5 1-16 20 0.25
-- 4102 1 2.5 3-9 6-35 22 0.85
-- 4103 1.7 4.5 4-12 16-70 27 1.27
-- 4104 3 7 6-18 50-150 25x38 1.83
-- 4105 3.5 8 10-28 90-400 30x40 4
-- 4106 4 9 20-40 240-800 30x40 6
