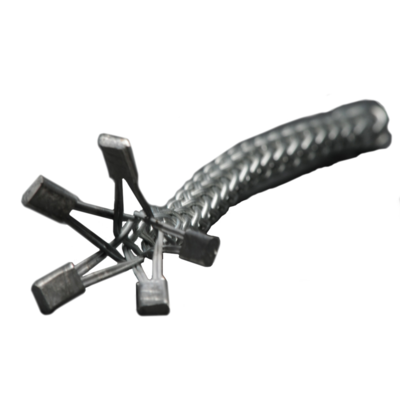

General: Open Ended Cablegrip ideal for joining two cables to form a continuous loop. Typical application: replacement of elevator cables, where the old cable would be attached to the new one, and the cable then fed round with ease.
Design: Pleated of double wire ropes.


  • Material: Steel wire rope - Galvanized.
  • Note: Substantial safety ratios have been applied to all quoted minimum-breaking strengths. Additional safety factors, determined by application, should be applied. CERTEX recommends a minimum saf
Open_grip
Select a row from the table below, then click the add to quote button
Art No MBL
ton
Grip Ø (mm) L (mm) Supplier code cable grips (minehead) Weight
kg
CAD
KO-0 1.504 8-16 1,200 612/8 0.25
04K0160 1.86 10-20 1,200 612/10 0.3
04K0170 2.256 20-30 1,200 612/20 0.35
04K0180 3.696 30-40 1,200 612/30 0.64
04K0200 5.49 40-50 1,200 612/40 1
04K0190 5.49 50-65 1,200 612/50 1.1
KO-6 7,320 65-80 1,800 618/65 2.2
KO-7 9,150 80-95 1,800 618/80 2.3
KO-8 12,736 95-110 1,800 618/95 4.4
