4:1 strength to weight ratio,high tensile alloy compared with steel
Rapid assembly – dismantles into 3 portable parts on 4 bolts
Ease of transportation – of van or trailer
Flat-packability – A -Frame legs fold-in for more compact transport or storage.
Safety features
Beam section has great torsional stability compared to I sections.
Captive beam trolley is inherently safe.
Trolley friction brake
Ease of handling
Simple height & span adjustment
Castor wheels are 360* swivel locking with anti-scuff polyurethane tread
Carry handles to beams.
Finger grips on custom beam and leg sections.
Anodised alloy surface finish as standard
Suitable for clean environments.
Corrosion resistant–low maintenance.
Manual handling compliance – without mechanical aids

  • Features: Lightweight & Portable

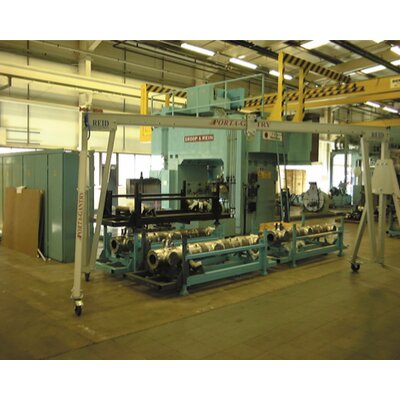

PortaGantry Pic

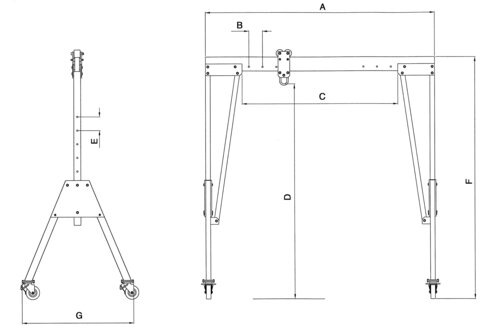

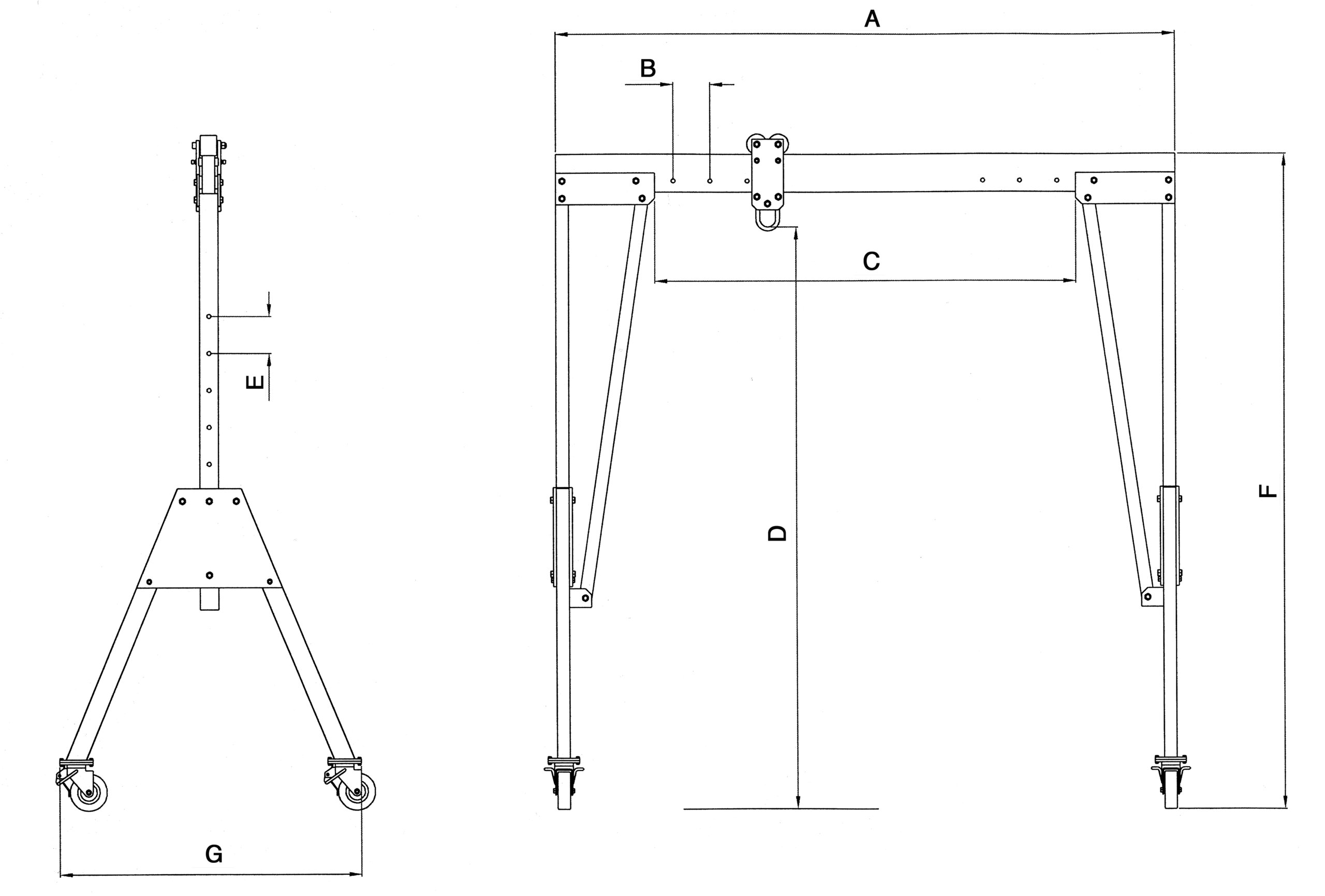

PortaGantry Drawing
Select a row from the table below, then click the add to quote button
Overall Beam Strength A (mm) Span Adjustment Increment B (mm Max Working Span C (mm) Max Height to Lifting Eye D (mm) Height Adjustment Increment E (mm) Min Height to lifting eye (mm) Max Height to Top of Beam F (mm) Max Width across legs G(mm) Fully assembled weight (kg) Beam weight (kg) A-Frame weight Working Load Limit (WLL)
2,500 200 1,580 2,361 150 1,611 2,678 1,220 66 16 25 500
3,920 200 3,000 2,854 150 2,104 3,171 1,429 107 27 40 1,000
4,570 200 3,650 3,143 200 2,143 3,459 1,726 136 33 52 2,000
4,570 200 3,650 4,089 200 2,889 4,405 2,011 210 50 80 3,000
Custom spans, heights and Weight Load Limits (WLL) on application
