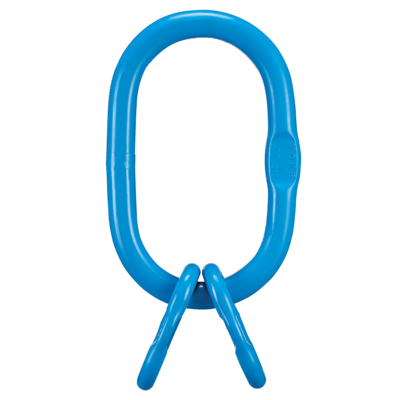

Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional Grade 8 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, CE-marked, Type, manufacturer ID, traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1.
  • Grade: 10
Yoke X-006W is no longer in production and replaced by X-006L

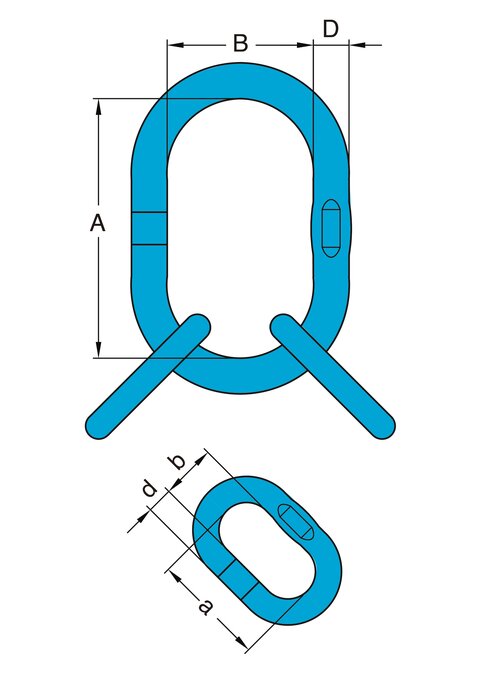

Yoke X-006 Welded Master Link Assembly measurements
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Proof Load
kN
For chain gr 10 Ø 3-4 leg
mm
Used to single hook acc. to DIN 15401 No. D
mm
A
mm
B
mm
d
mm
a
mm
b
mm
Weight
kg
CAD
11.02X-006W-19 CD-19 + 2 DD+13 4,2 103 6 6 19 160 95 13 54 25 1,5 -
11.02X-006W-22 CD-22 + 2 DD+16 8,2 201 7,8 10 22 170 105 16 70 34 2,3 -
11.02X-006W-28 CD-28 + 2 DD+19 10,7 262 10 10 28 190 110 19 85 40 4,1 -
11.02X-006W-32 CD-32 + 2 DD+22 15,7 385 13 12 32 230 130 22 115 50 6,6 -
11.02X-006W-36 CD-36 + 2 DD+28 22,2 544 16 20 36 275 150 28 140 65 10,9 -

WLL ton is 0-45º
