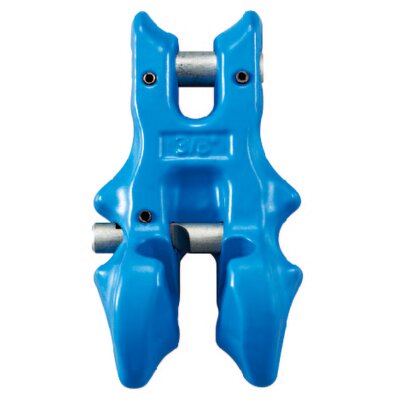

Shortening clutch with safety gear

At least 25% greater WLL than traditional Grade 8 products.

Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

Fatigue rated to 20,000 cycles at 1.5 times the WLL.



  • Material: Quenched and tempered alloy steel.
  • Marking: According to standard
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL For chain Grade 10 Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight CAD

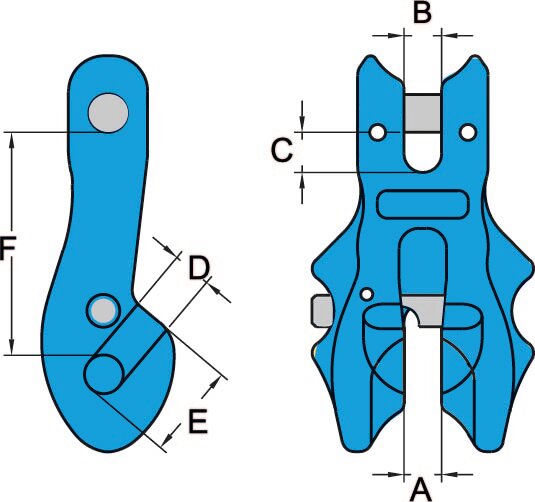

11.21X-06106 1,4 6 7 7 10 7 18 50 0,3 -
11.21X-06107 2,5 7,8 10 10 10 10 24 56 0,5 -
11.21X-06110 4 10 12 12 12 12 28 66 0,9 -
11.21X-06113 6,7 13 15 15 16 16 39 88 2,2 -
11.21X-06116 10 16 18 21 19 19 48 103 3,7 -
11.21X-06120 16 18,20 22 23 23 21 55 132 5,8 -
