Powertex

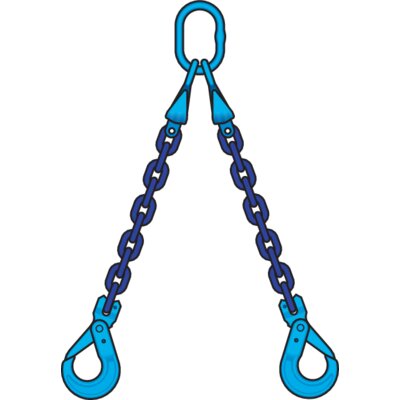

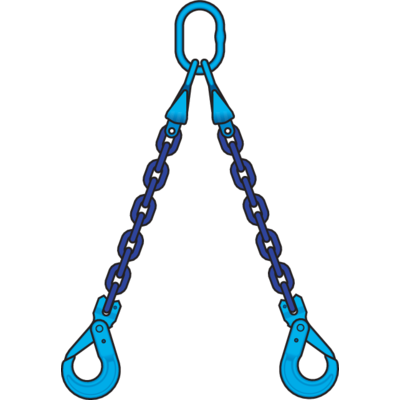

POWERTEX 2-legs chain slings for efficient and safe operation.
All slings are equipped with integrated shorting hooks and safety lifting hooks.
For convenient storage and transportation, slings are supply in reusable packaging.

  • Material: Alloy steel
  • Marking: CE-marked, WLL, Serial No., Manufactor ID
  • Note: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
WLL
ton
WLL 45-60°
ton
EWL
m
Weight
kg
CAD
11.91PCSX2660802 8 3,55 2,5 2 10,43
11.91PCSX2660803 8 3,55 2,5 3 12
11.91PCSX2660804 8 3,55 2,5 4 15,87
11.91PCSX2661002 10 5,6 4 2 16,02
11.91PCSX2661004 10 5,6 4 4 24,3
11.91PCSX2661006 10 5,6 4 6 32,58
11.91PCSX2661306 13 9,5 6,7 6 57,89

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
