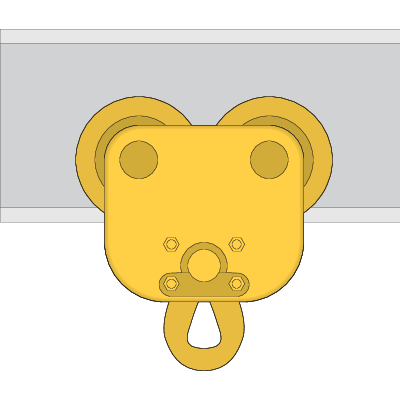

Manual Trolley Elephant

Home / Products / Lifting Machines / Trolleys / Manual Trolley Elephant

General: Elephant plain trolleys are top quality. With a solid and compact design Elephant trolley is adjustable to any beam width within specified range by simple adjustment of No. of spacers. Wheels with high grade sealed ball bearings are made to fit any shape of “I” beam. For extra safety, units come with Anti Drop Plates.

Proof load: 1,5 x WLL.

Marking: WLL, code and CE marking.
Finish: Painted.

Select a row from the table below, then click the add to quote button

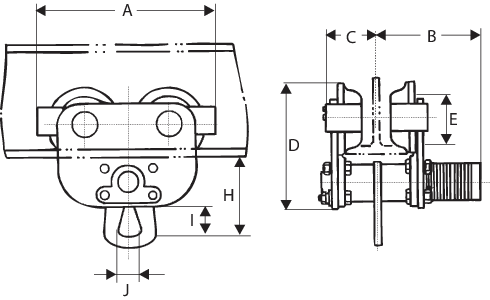

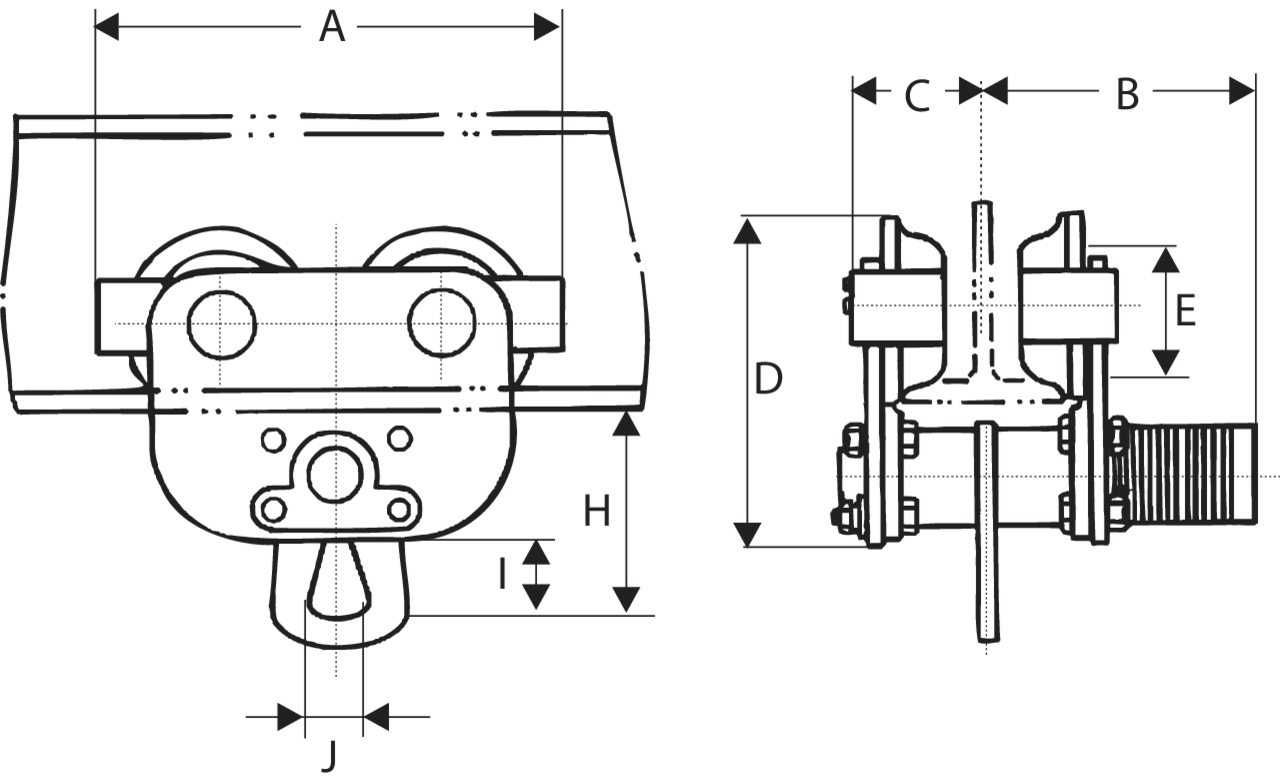

Art No	WLL Ton	Stock Code	Width of aI-beam	Min curve radius (m)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	H (mm)	I (mm)	J (mm)	Weight kg
06.60BV050	0.5	06C0130	60-130	0,9	229	130	68	160	70	108	38	28	8
06.60BV100	1	06C0140	60-130	1,1	250	130	68	172	80	112	40	30	11
06.60BV200	2	06C0150	70-155	1,2	308	155	80	209	98	150	60	40	19
06.60BV310	3.15	06C0160	90-160	1,7	326	152	94	239	115	175	65	50	27
06.60BV500	5		90-180	2,3	367	183	102	298	125	220	80	60	49
06.60BV750	7.5		125-190	3	470	187	187	290	158	245	100	80	98
06.60BV1000	10		125-190	3	470	187	187	290	158	245	100	80	100
06.60BV1600	16		150-190	6	669	230	230	410	197	370	150	140	295
06.60BV2000	20		150-190	6	669	230	230	410	197	370	155	140	400
