Bulldog

Super-quick adjustment to any monorail
Durable baked enamel paint protection
Precision ball bearing trolley wheels
  • Features: Lightweight robust construction

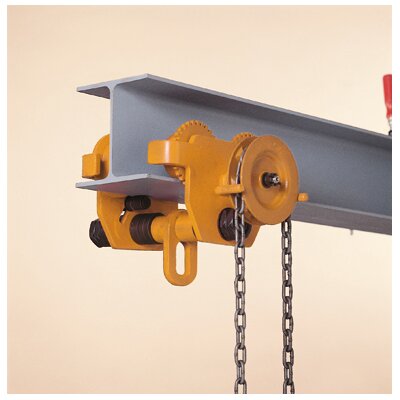

    Geared Trolley
    LD Geared Trolley
    Select a row from the table below, then click the add to quote button
    Part Code WLL
    ton
    Beam width
    mm
    Net weight
    kg

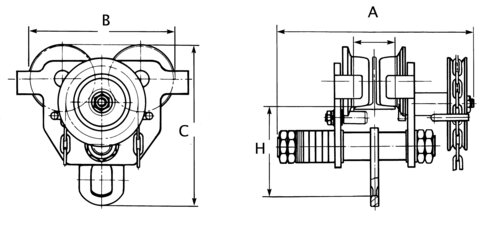

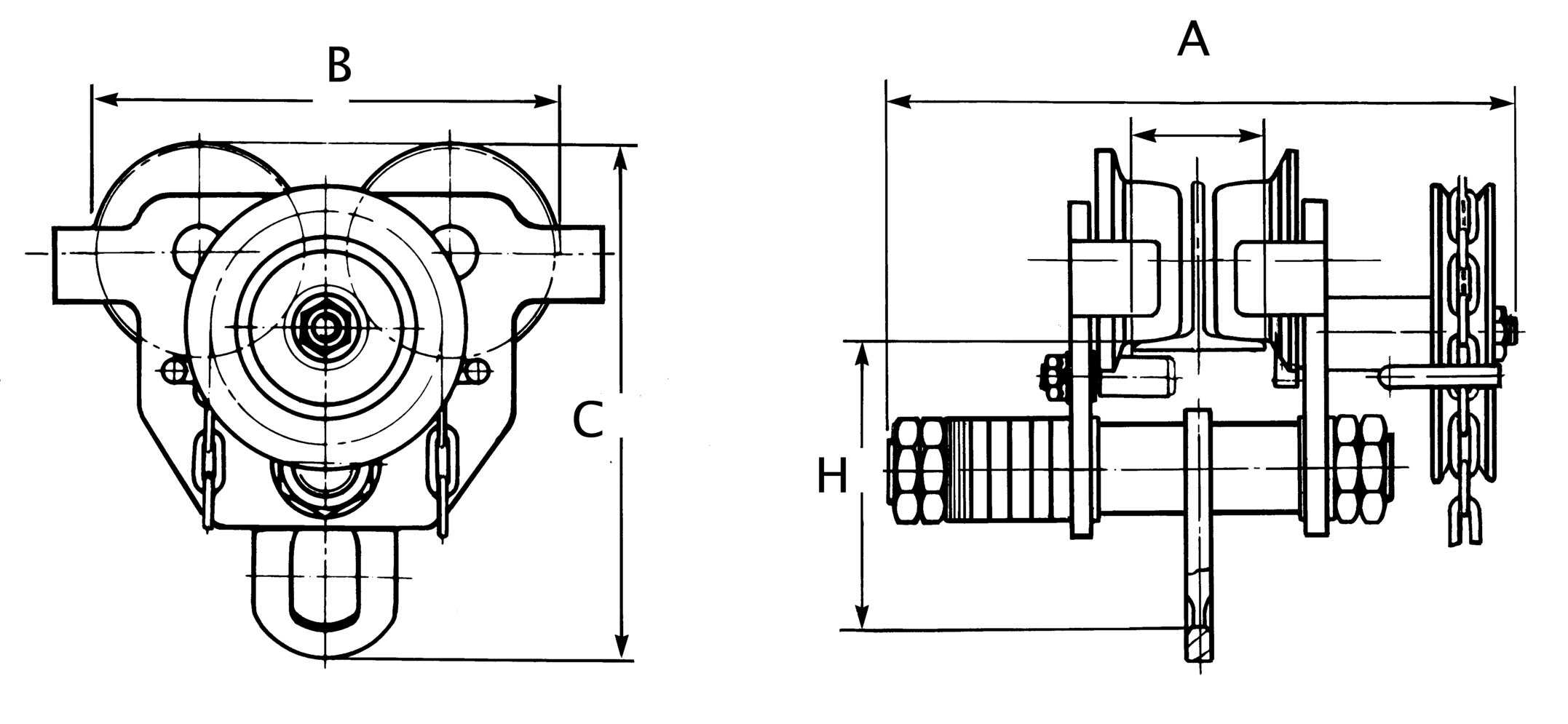

    Clearance Dimensions
    mm B
    Clearance Dimensions
    mm C
    Clearance Dimensions
    mm H
    Min. Radius Curve
    m
    06C0060 1 135 18 380 260 239 1
    06C0070 2 161 27 390 300 286 1,1
    06C0080 3 188 43 513 345 336 1,3
    06C0090 5 220 60 430 395 393 1,4
    -- 10 280 105 468 470 500 1,7
