Design: Deformation and angle indicators forged on the bow. Fatigue rated.

  • Material: Forged steel, Quenched & Tempered, with alloy pins.
  • Marking: According to standard, CE-marked, WLL
  • Finish: Galvanized and painted fluorescent yellow.
  • Standard: EN 13889
  • Safety factor: 5:1

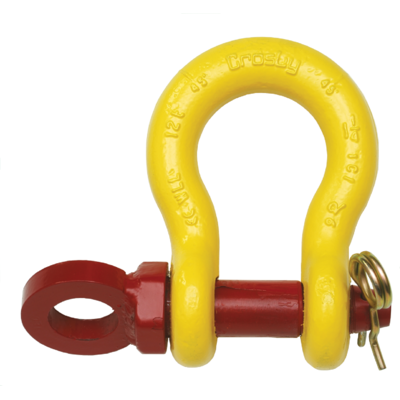

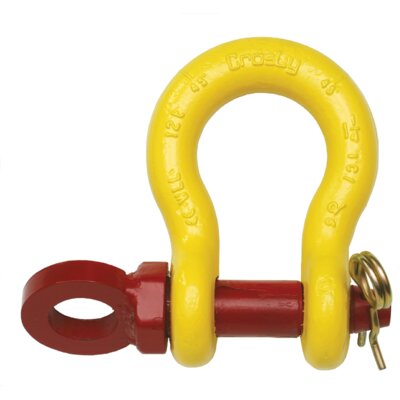

Subsea Shackle Crosby G-209R

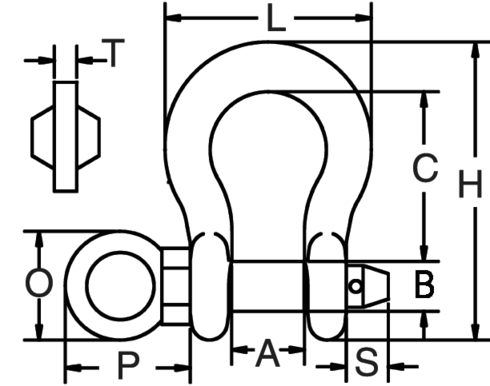

Subsea Shackle Crosby G-209R measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Opening
mm
Bolt Ø
mm
A +/- 6.35
mm
B
mm
C
mm
H
mm
L
mm
O
mm
P
mm
S
mm
T
mm
Weight
kg
CAD
-- 6,5 36,6 25,4 36,6 25,4 84 148 102 50 58 17 10 1,69 -
-- 8,5 42,9 28,7 42,9 28,7 95,5 167 119 50 61 18 10 2,59 -
-- 9,5 46,0 31,8 46 31,8 108 190 131 70 83 18 12 3,77 -
-- 12 51,5 35,1 51,5 35,1 119 210 146 70 84 23 12 5,02 -
-- 13,5 57,0 38,1 57 38,1 133 233 162 75 91 23 15 6,65 -
-- 17 60,5 41,4 60,5 41,4 146 254 175 75 93 24 15 8,58 -
-- 25 73,0 51,0 73 51 178 313 225 90 114 29 17,5 14,1 -
-- 35 82,5 57,0 82,5 57 197 348 253 106 132 30 20 21,4 -
-- 55 105 70,0 105 70 267 453 327 120 145 45 25 42,8 -

*Minimum Ultimate Load is 5 times the Working Load Limit.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
