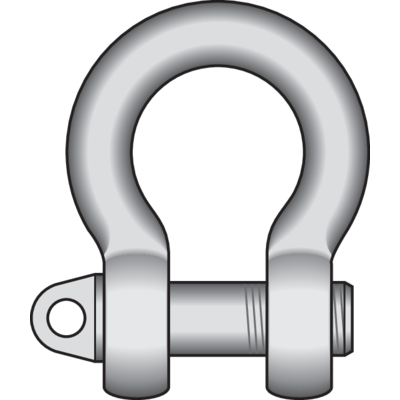

Design:A range of high quality UK manufactured Higher Tensile steel bow shackles
Material:
Marking:
Safety Factor:
4:1
Finish:
Standard:

      201_225mm
      BOW SHACKLES DRAW
      ALTERNATIVE PINS DRAW
      Select a row from the table below, then click the add to quote button
      Part Code WLL
      ton
      D
      mm
      W
      mm
      S
      mm
      e
      mm
      Weight
      kg
      -- 0,5 1/2 5/8 1.1/2 1 0,18
      05A1015 1 5/8 7/8 2 1.1/4 0,34
      -- 1,5 3/4 1.1/8 2.1/2 1.1/2 0,62
      -- 2 7/8 1.3/8 3 1.3/4 1,05
      05A0860 3 1 1.1/2 3.1/2 2 1,63
      -- 4 1.1/8 1.3/4 4 2.1/4 2,28
      -- 5 1.1/4 2 4.1/2 2.1/2 3,2
      05A1060 6,25 1.3/8 2.1/4 5 2.3/4 4,54
      -- 7,5 1.1/2 2.3/8 5.1/2 3 5,74
      -- 9,25 1.3/4 2.5/8 6 3.1/2 8,51
      -- 10,5 1.7/8 2.7/8 6.1/2 3.3/4 11,23
      -- 12,5 2 3.1/8 7 4 13,47
